TPS60402DBVT 数据手册
其他文档
TPS60400-03 30 pages
技术规格
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: -
- Topology: -

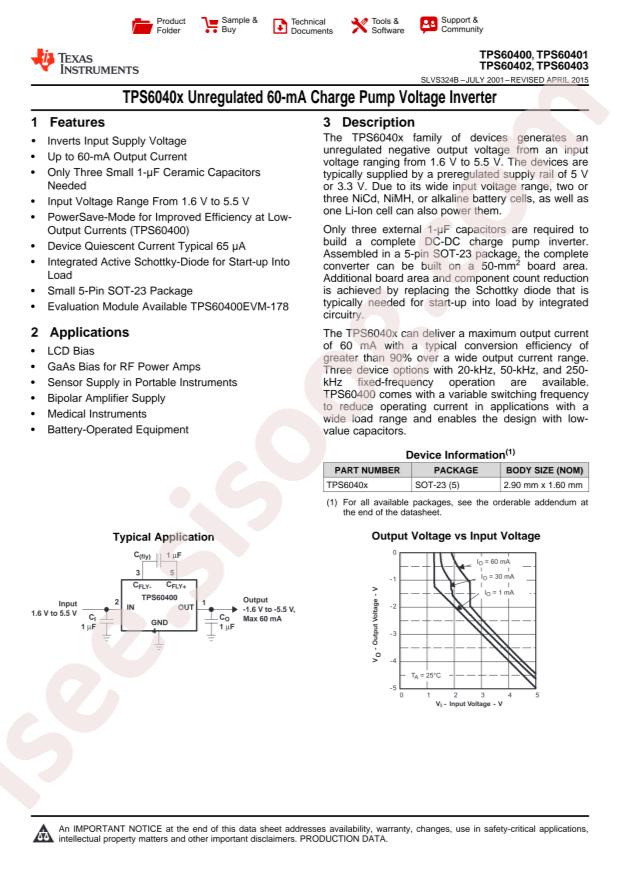

- Datasheet: Texas Instruments TPS60402DBVT
- Output Type: Fixed
- Input Voltage: 1.8V~5.25V
- Output Voltage: -5.5V~-1.6V
- Number of Outputs: 1
- Switching Frequency: 50kHz
- Output Current (Max): 60mA
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Package: SOT-23-5
- Manufacturer: Texas Instruments
- Current - Output: 60mA
- Voltage - Input (Max): 5.25V
- Frequency - Switching: 50kHz
- Part Status: Active
- Base Part Number: TPS604
- Voltage - Output (Min/Fixed): -Vin, 2Vin, Vin/2
- Package / Case: SC-74A, SOT-753
- Series: -
- Packaging: Cut Tape (CT)
- Synchronous Rectifier: No
- Output Configuration: Positive or Negative
- Voltage - Output (Max): -
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-23-5
- Voltage - Input (Min): 1.8V
- detail: Charge Pump Switching Regulator IC Positive or Negative Fixed -Vin, 2Vin, Vin/2 1 Output 60mA SC-74A, SOT-753
