TPS74501PDRVT دیتاشیت

TPS74501PDRVT

مشخصات دیتاشیت

نام دیتاشیت TPS74501PDRVT
حجم فایل 80.155 کیلوبایت
نوع فایل pdf
تعداد صفحات 34

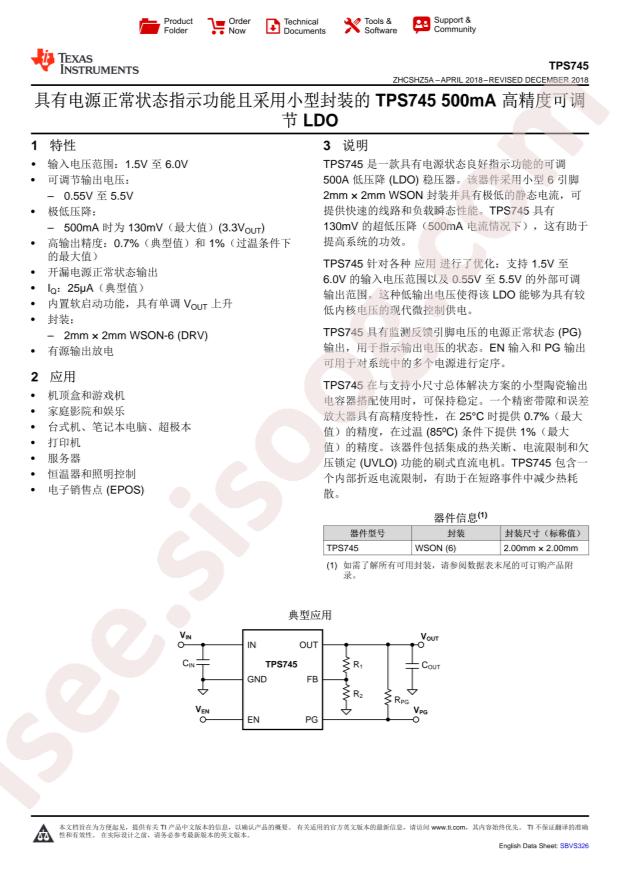

مشاهده دیتاشیت TPS74501PDRVT

دانلود دیتاشیت

سایر مستندات

مستندات دیگری یافت نشد!

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Texas Instruments TPS74501PDRVT
  • Output Type: Adjustable
  • Output Current: 500mA
  • Output Voltage: 0.55V~5.5V
  • Dropout Voltage: 0.88V@(500mA)
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 6V
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Quiescent Current (Ground Current): 31uA

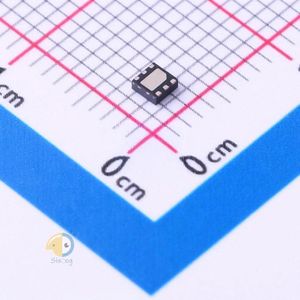

  • Package: WSON-6
  • Manufacturer: Texas Instruments
  • Voltage - Input (Max): 6V
  • Current - Quiescent (Iq): 31µA
  • Output Configuration: Positive
  • Base Part Number: TPS745
  • Voltage - Output (Min/Fixed): 0.55V
  • Protection Features: Over Temperature, Short Circuit, Soft Start
  • Series: -
  • Packaging: Cut Tape (CT)
  • PSRR: 50dB ~ 30dB (1kHz ~ 1MHz)
  • Supplier Device Package: 6-WSON (2x2)
  • Package / Case: 6-WDFN Exposed Pad
  • Number of Regulators: 1
  • Part Status: Active
  • Control Features: Enable
  • Voltage - Output (Max): 5.5V
  • Mounting Type: Surface Mount
  • Voltage Dropout (Max): 0.88V @ 500mA
  • Current - Output: 500mA
  • detail: Linear Voltage Regulator IC 1 Output 500mA 6-WSON (2x2)
