LM5109A دیتاشیت

LM5109A

مشخصات دیتاشیت

نام دیتاشیت LM5109A
حجم فایل 1616.766 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

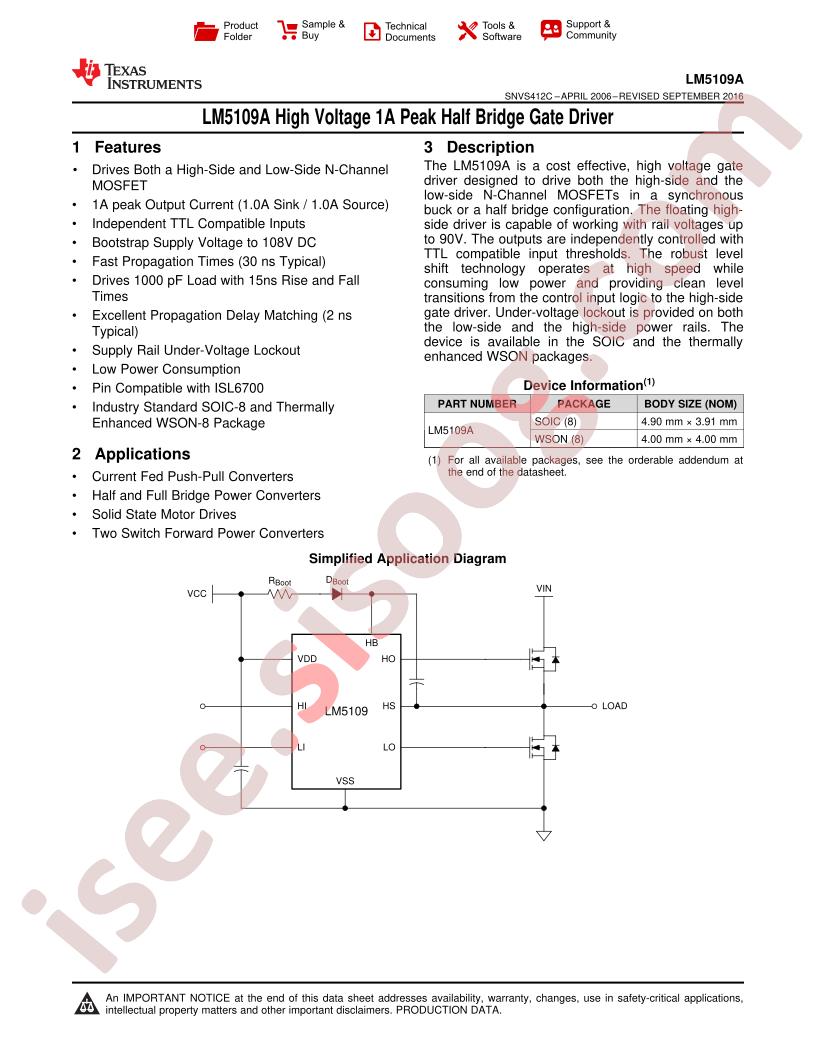

مشاهده دیتاشیت LM5109A

دانلود دیتاشیت

سایر مستندات

LM5109ASD/NOPB 29 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Texas Instruments LM5109ASD/NOPB
  • Fall Time: 15ns
  • Load Type: MOSFET
  • Rise Time: 15ns
  • Supply Voltage: 8V~14V
  • Number of Drivers: 2
  • Driven Configuration: Half Bridge
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Peak Output Current(sink): 1A
  • Peak Output Current(source): 1A
  • Package: DFN-8(4x4)
  • Manufacturer: Texas Instruments
  • Channel Type: Independent
  • Current - Peak Output (Source, Sink): 1A, 1A
  • Base Part Number: LM5109
  • Package / Case: 8-WDFN Exposed Pad
  • Logic Voltage - VIL, VIH: 0.8V, 2.2V
  • Supplier Device Package: 8-WSON (4x4)
  • Rise / Fall Time (Typ): 15ns, 15ns
  • Part Status: Discontinued at Digi-Key
  • Series: -
  • Input Type: Non-Inverting
  • Mounting Type: Surface Mount
  • Packaging: Cut Tape (CT)
  • Voltage - Supply: 8V ~ 14V
  • Gate Type: N-Channel MOSFET
  • High Side Voltage - Max (Bootstrap): 108V
  • detail: Half-Bridge Gate Driver IC Non-Inverting 8-WSON (4x4)
