LM3524DMX/NOPB دیتاشیت

مشخصات دیتاشیت

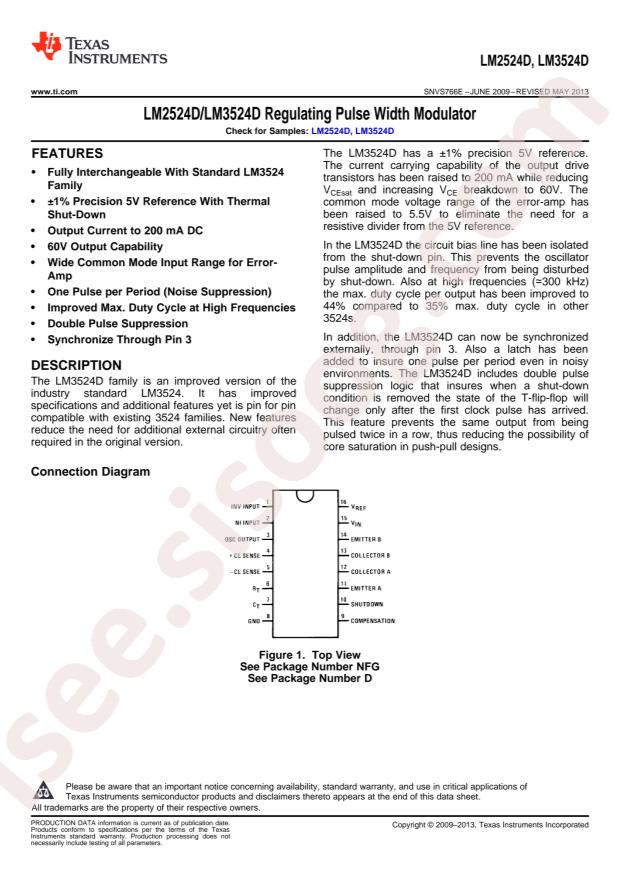

مشاهده دیتاشیت LM3524DMX/NOPB	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Controllers
Function: boost converterType;Step-down type
Topology: Step-down;Boost
Datasheet: Texas Instruments LM3524DMX/NOPB
Input Voltage: 8V~40V
Duty Cycle (Max): 49%
Number of Outputs: 1
Switching Frequency: -
Operating Temperature: 0°C~+125°C@(TJ)
Synchronous Rectification: NO
Package: SOP-16
Manufacturer: Texas Instruments
Voltage - Supply (Vcc/Vdd): 8V ~ 40V
Package / Case: 16-SOIC (0.154", 3.90mm Width)
Base Part Number: LM3524
Clock Sync: No
Control Features: Current Limit, Enable, Frequency Control
Part Status: Obsolete
Series: -
Mounting Type: Surface Mount
Output Type: Transistor Driver
Output Configuration: Positive or Negative
Synchronous Rectifier: No
Frequency - Switching: -
Supplier Device Package: 16-SOIC
Packaging: Tape & Reel (TR)
Output Phases: 1
Serial Interfaces: -
detail: Buck, Boost Regulator Positive or Negative Output Step-Up, Step-Down DC-DC Controller IC 16-SOIC
