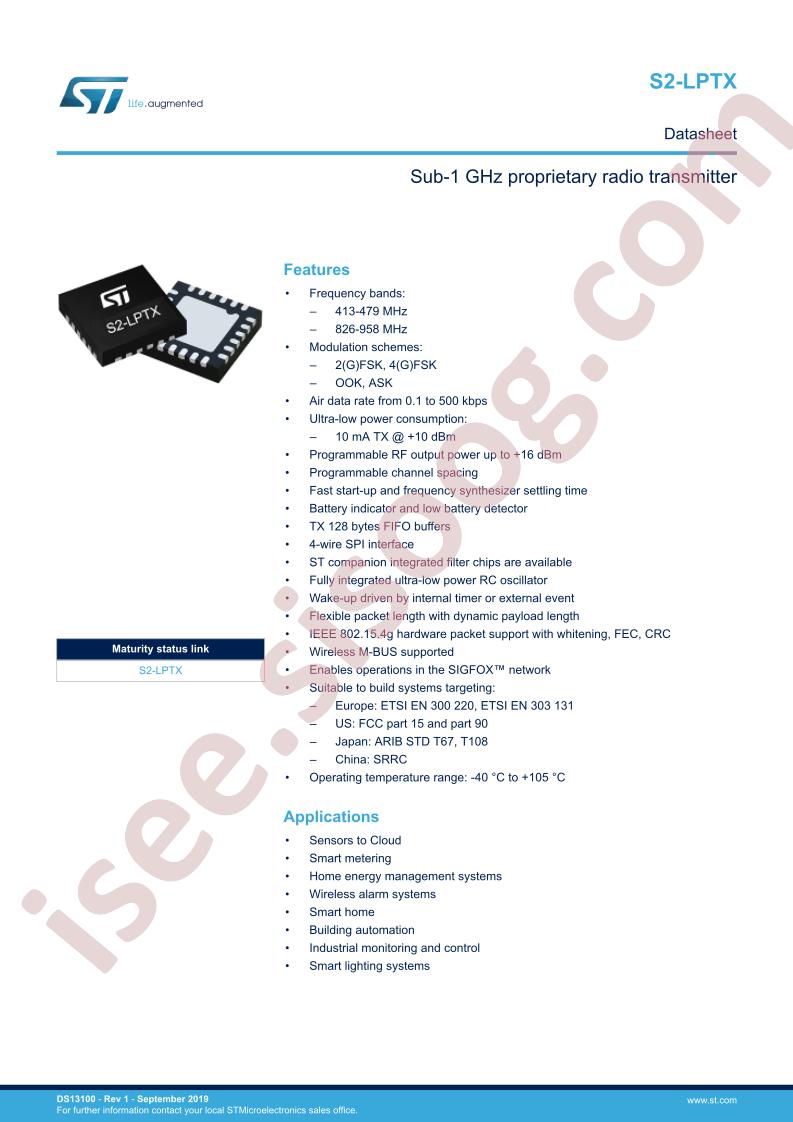

دیتاشیت S2-LPTXQTR
مشخصات دیتاشیت
| نام دیتاشیت |
S2-LPTX
|
| حجم فایل |
2555.734
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
64
|
مشخصات
-
RoHS:
true
-
Category:
Radio Frequency Chip/Antenna/RF Transceiver ICs
-
Data Rate:
500Kbps
-
Datasheet:
STMicroelectronics S2-LPTXQTR
-
Interface:
SPI,UART
-
Applications:
802.15.4,General-purpose ISM<1GHz
-
Frequency Range:
413MHz~479MHz;826MHz~958MHz
-
Operating Voltage:
1.8V~3.6V
-
Operating Temperature:
-40°C~+105°C
-
Current Of Transmitting:
11.5mA
-
Package:
QFN-24-EP(4x4)
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Part Status:
Active
-
Type:
TxRx + MCU
-
RF Family/Standard:
802.15.4, General ISM < 1GHz
-
Protocol:
SIGFOX™, Wireless M-Bus
-
Modulation:
2-FSK, 4-FSK, 2GFSK, 4GFSK, ASK, OOK
-
Frequency:
413MHz ~ 479MHz, 826MHz ~ 958MHz
-
Data Rate (Max):
500kbps
-
Power - Output:
16dBm
-
Sensitivity:
-
-
Memory Size:
-
-
Serial Interfaces:
SPI, UART
-
GPIO:
4
-
Voltage - Supply:
1.8V ~ 3.6V
-
Current - Receiving:
-
-
Current - Transmitting:
11.5mA ~ 32mA
-
Mounting Type:
Surface Mount
-
Package / Case:
24-VFQFN Exposed Pad
-
Supplier Device Package:
24-QFN (4x4)
-
detail:
IC RF TxRx + MCU 802.15.4, General ISM < 1GHz SIGFOX™, Wireless M-Bus 413MHz ~ 479MHz, 826MHz ~ 958MHz 24-VFQFN Exposed Pad
