- دیتاشیت STD5N52K3
STD5N52K3 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | STD5N52K3 |
|---|---|
| حجم فایل | 73.64 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 23 |
دانلود دیتاشیت STD5N52K3 |
دانلود دیتاشیت |
|---|
سایر مستندات

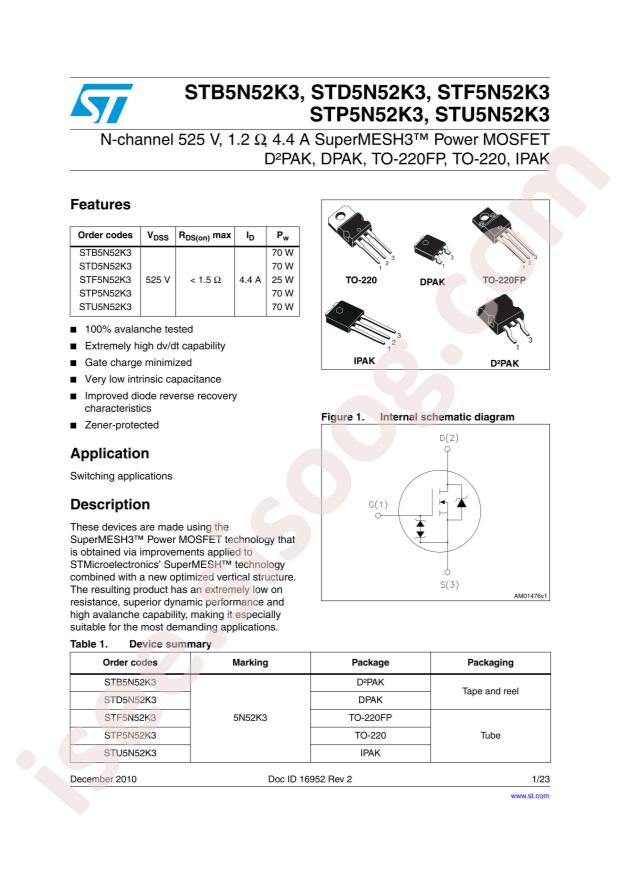

STB,STD,STF,STP,STU5N52K3 23 pages
مشخصات فنی
- RoHS: true
- Type: N Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: STMicroelectronics STD5N52K3
- Operating Temperature: -55°C~+150°C@(Tj)
- Power Dissipation (Pd): 70W
- Total Gate Charge (Qg@Vgs): 17nC@10V
- Drain Source Voltage (Vdss): 525V
- Input Capacitance (Ciss@Vds): 545pF@100V
- Continuous Drain Current (Id): 4.4A
- Gate Threshold Voltage (Vgs(th)@Id): 4.5V@50uA
- Drain Source On Resistance (RDS(on)@Vgs,Id): 1.5Ω@10V,2.2A
- Package: TO-252-2(DPAK)
- Manufacturer: STMicroelectronics
- Series: SuperMESH3™
- Packaging: Cut Tape (CT)
- Part Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 525V
- Current - Continuous Drain (Id) @ 25°C: 4.4A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 1.5Ohm @ 2.2A, 10V
- Vgs(th) (Max) @ Id: 4.5V @ 50µA
- Gate Charge (Qg) (Max) @ Vgs: 17nC @ 10V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 545pF @ 100V
- FET Feature: -
- Power Dissipation (Max): 70W (Tc)
- Mounting Type: Surface Mount
- Supplier Device Package: DPAK
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Base Part Number: STD5N
- detail: N-Channel 525V 4.4A (Tc) 70W (Tc) Surface Mount DPAK
