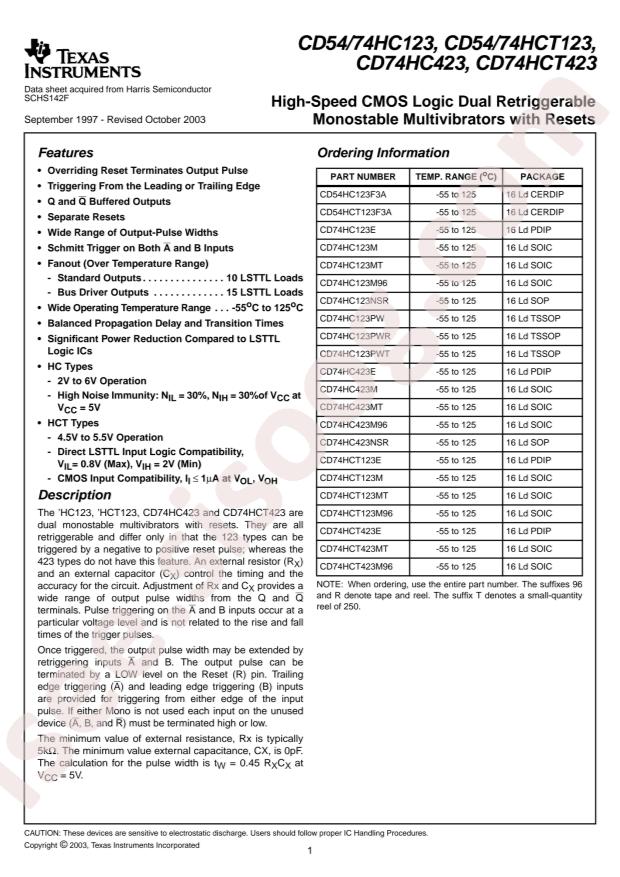

CD74HCT123E Datasheet

CD74HCT123E

Datasheet specifications

Datasheet's name CD74HCT123E
File size 122.733 KB
File type pdf
Number of pages 26

Download Datasheet CD74HCT123E

Download Datasheet

Other documentations

CD54,74HC(T)123,423 23 pages

Technical specifications

  • RoHS: true
  • Category: Logic ICs/Monostable Multivibrators
  • Datasheet: Texas Instruments CD74HCT123E
  • Logic Family: 74HCT
  • Sink Current: 4mA
  • Source Current: 4mA
  • Supply Voltage: 4.5V~5.5V
  • Logic Gate Type: Monostable
  • Propagation Delay: 25ns
  • Number Of Channels: 2
  • OperatingTemperature: -55°C~+125°C
  • Package: PDIP-16
  • Manufacturer: Texas Instruments
  • Independent Circuits: 2
  • Logic Type: Monostable
  • Part Status: Active
  • Operating Temperature: -55°C ~ 125°C
  • Mounting Type: Through Hole
  • Packaging: Tube
  • Package / Case: 16-DIP (0.300", 7.62mm)
  • Current - Output High, Low: 4mA, 4mA
  • Series: 74HCT
  • Base Part Number: 74HCT123
  • Supplier Device Package: 16-PDIP
  • Schmitt Trigger Input: No
  • Voltage - Supply: 4.5V ~ 5.5V
  • detail: Monostable Multivibrator 25ns 16-PDIP
