STL2N80K5 دیتاشیت

STL2N80K5

مشخصات دیتاشیت

نام دیتاشیت STL2N80K5
حجم فایل 58.162 کیلوبایت
نوع فایل pdf
تعداد صفحات 17

مشاهده دیتاشیت STL2N80K5

دانلود دیتاشیت

سایر مستندات

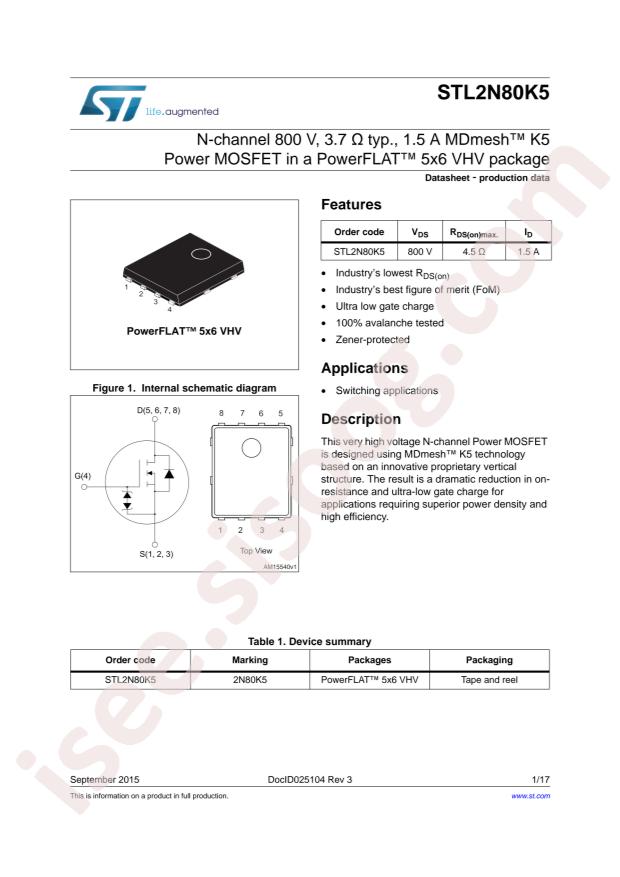

STL2N80K5 17 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STL2N80K5
  • Power Dissipation (Pd): 33W
  • Drain Source Voltage (Vdss): 800V
  • Continuous Drain Current (Id): 2A
  • Gate Threshold Voltage (Vgs(th)@Id): 5V@100uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 4.9Ω@10V,1A
  • Package: PowerFLAT-8(5x6)
  • Manufacturer: STMicroelectronics
  • Series: SuperMESH5™
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 800V
  • Current - Continuous Drain (Id) @ 25°C: 2A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 4.9Ohm @ 1A, 10V
  • Vgs(th) (Max) @ Id: 5V @ 100µA
  • Gate Charge (Qg) (Max) @ Vgs: 3nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 95pF @ 100V
  • FET Feature: -
  • Power Dissipation (Max): 33W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: PowerFlat™ (5x6)
  • Package / Case: 8-PowerVDFN
  • Base Part Number: STL2
  • detail: N-Channel 800V 2A (Tc) 33W (Tc) Surface Mount PowerFlat™ (5x6)
