TMUX1072DGSR دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت TMUX1072DGSR	دانلود دیتاشیت

TMUX1072 29 pages

RoHS: true
Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
Datasheet: Texas Instruments TMUX1072DGSR
Switch Circuit: -

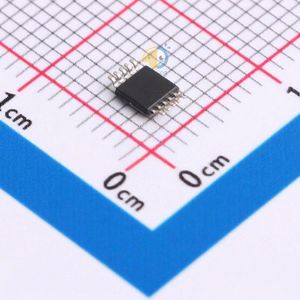

Package: MSOP-10
Manufacturer: Texas Instruments
Current - Leakage (IS(off)) (Max): 185µA
Voltage - Supply, Single (V+): 2.3V ~ 5.5V
Voltage - Supply, Dual (V±): -
Number of Circuits: 2
Channel-to-Channel Matching (ΔRon): 70mOhm
Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Part Status: Active
Supplier Device Package: 10-VSSOP
Switch Time (Ton, Toff) (Max): 250µs, 10µs
Packaging: Cut Tape (CT)
-3db Bandwidth: 1.2GHz
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Crosstalk: -90dB @ 100kHz
Base Part Number: TMUX10
Series: -
Channel Capacitance (CS(off), CD(off)): 4pF, 4pF
On-State Resistance (Max): 18Ohm
Multiplexer/Demultiplexer Circuit: 2:1
Charge Injection: -
detail: 2 Circuit IC Switch 2:1 18Ohm 10-VSSOP
