TPS7A26 Datasheet دیتاشیت

مشخصات دیتاشیت

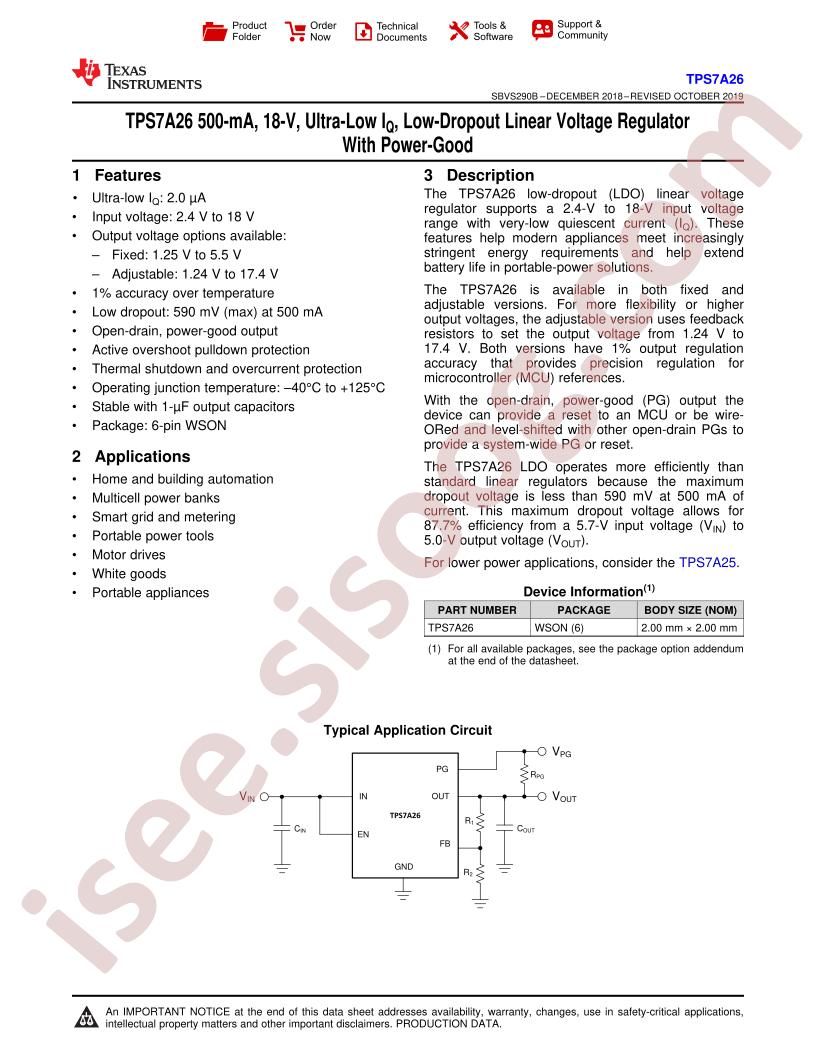

مشاهده دیتاشیت TPS7A26 Datasheet	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/Linear Voltage Regulators (LDO)
Datasheet: Texas Instruments TPS7A2601DRVR
Output Type: Adjustable
Output Current: 500mA
Output Voltage: 1.24V~17.4V
Dropout Voltage: 0.55V@(500mA)
Output Polarity: positive
Number of Outputs: 1
Maximum Input Voltage: 18V
Operating Temperature: -40°C~+125°C@(Tj)
Quiescent Current (Ground Current): 5uA
Package: DFN-6(2x2)
Manufacturer: Texas Instruments
Current - Supply (Max): 400µA
Output Configuration: Positive
Package / Case: 6-WDFN Exposed Pad
Packaging: Cut Tape (CT)
Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Number of Regulators: 1
Part Status: Active
Current - Quiescent (Iq): 5µA
Supplier Device Package: 6-WSON (2x2)
Voltage - Input (Max): 18V
Voltage - Output (Min/Fixed): 1.24V
Mounting Type: Surface Mount
PSRR: 80dB ~ 52dB (10Hz ~ 1kHz)
Base Part Number: TPS7A2
Series: -
Control Features: Enable, Power Good
Voltage - Output (Max): 17.4V
Voltage Dropout (Max): 0.55V @ 500mA
Current - Output: 500mA
detail: Linear Voltage Regulator IC 1 Output 500mA 6-WSON (2x2)
