دیتاشیت LM5021MM-2/NOPB

LM5021

مشخصات دیتاشیت

نام دیتاشیت LM5021
حجم فایل 5257.171 کیلوبایت
نوع فایل pdf
تعداد صفحات 36

دانلود دیتاشیت LM5021

LM5021 Datasheet

مشخصات

  • Duty Cycle: 50%
  • Output Isolation: Isolated
  • Topology: Flyback, Forward
  • Manufacturer: Texas Instruments
  • Frequency - Switching: Up to 1MHz
  • Part Status: Active
  • Operating Temperature: -40°C ~ 125°C (TJ)

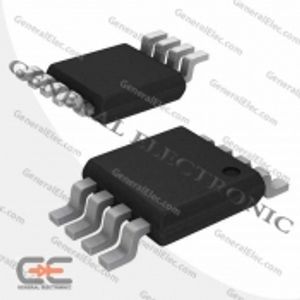

  • Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
  • Packaging: Cut Tape (CT)
  • Internal Switch(s): No
  • Fault Protection: Current Limiting, Over Load
  • Voltage - Breakdown: -
  • Series: -
  • Control Features: Frequency Control, Soft Start, Sync
  • Supplier Device Package: 8-VSSOP
  • Mounting Type: Surface Mount
  • Base Part Number: LM5021
  • Voltage - Supply (Vcc/Vdd): 8V ~ 30V
  • Voltage - Start Up: 20V
  • detail: Converter Offline Flyback, Forward Topology Up to 1MHz 8-VSSOP
