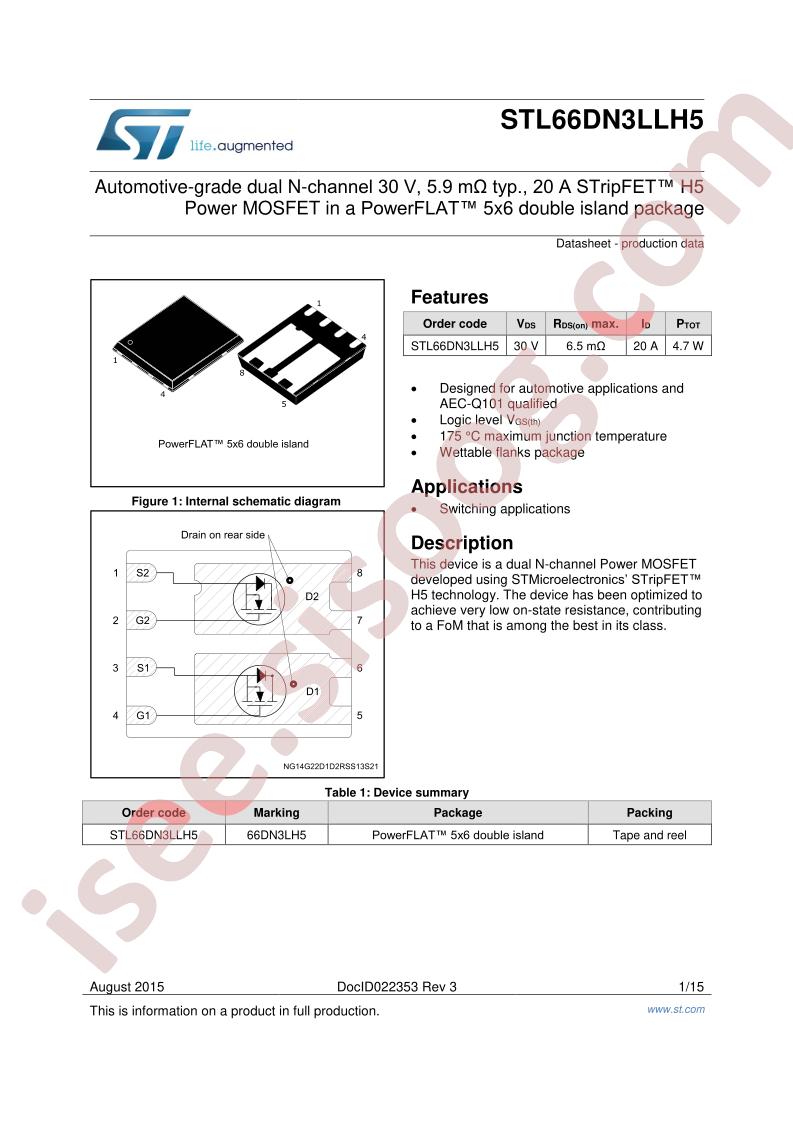

مشاهده دیتاشیت STL66DN3LLH5	دانلود دیتاشیت

مستندات دیگری یافت نشد!

Manufacturer: STMicroelectronics
Series: Automotive, AEC-Q101, STripFET™ V
Packaging: Cut Tape (CT)
Part Status: Active
FET Type: 2 N-Channel (Dual)
FET Feature: Logic Level Gate
Drain to Source Voltage (Vdss): 30V
Current - Continuous Drain (Id) @ 25°C: 78.5A
Rds On (Max) @ Id, Vgs: 6.5mOhm @ 10A, 10V
Vgs(th) (Max) @ Id: 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs: 12nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds: 1500pF @ 25V
Power - Max: 72W
Operating Temperature: -55°C ~ 175°C (TJ)
Mounting Type: Surface Mount
Package / Case: 8-PowerVDFN
Supplier Device Package: PowerFlat™ (5x6)
Base Part Number: STL66
detail: Mosfet Array 2 N-Channel (Dual) 30V 78.5A 72W Surface Mount PowerFlat™ (5x6)
