TPS73533QDRBRQ1 دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت TPS73533QDRBRQ1	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/Linear Voltage Regulators (LDO)

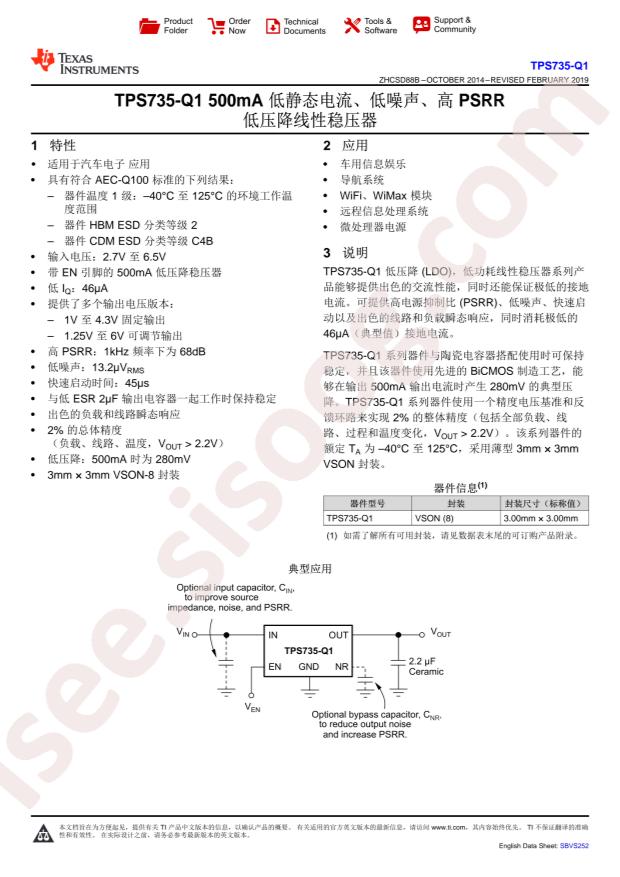

Datasheet: Texas Instruments TPS73533QDRBRQ1
Output Current: 500mA
Output Voltage: 3.3V
Dropout Voltage: 0.5V@(500mA)
Output Polarity: positive
Number of Outputs: 1
Maximum Input Voltage: 6.5V
Operating Temperature: -40°C~+125°C
Quiescent Current (Ground Current): 65uA
Package: SON-8
Manufacturer: Texas Instruments
Voltage - Input (Max): 6.5V
Current - Quiescent (Iq): 65µA
Output Configuration: Positive
Base Part Number: TPS735
Voltage - Output (Min/Fixed): 3.3V
Protection Features: Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Series: Automotive, AEC-Q100
Packaging: Cut Tape (CT)
PSRR: 60dB ~ 21dB (100Hz ~ 100kHz)
Supplier Device Package: 8-SON (3x3)
Package / Case: 8-VDFN Exposed Pad
Number of Regulators: 1
Part Status: Active
Output Type: Fixed
Control Features: Enable
Voltage - Output (Max): -
Mounting Type: Surface Mount
Voltage Dropout (Max): 0.5V @ 500mA
Current - Output: 500mA
detail: Linear Voltage Regulator IC 1 Output 500mA 8-SON (3x3)
