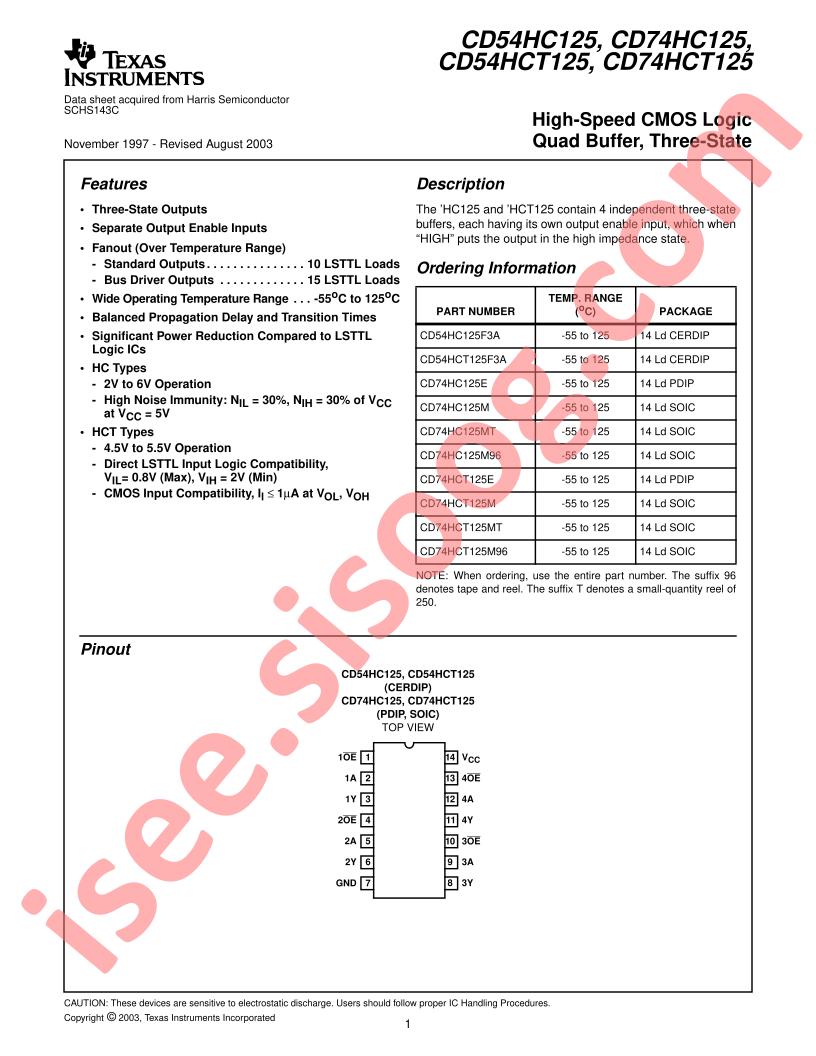

CD54,74HC(T)125 دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت CD54,74HC(T)125	دانلود دیتاشیت

RoHS: true
Category: Logic ICs/Buffer/Driver/Transceiver
Datasheet: Texas Instruments CD74HC125E
output type: Tri-State
Logic Family: 74HC
Sink Current: 7.8mA
Source Current: 7.8mA
Supply Voltage: 2V~6V
Number of Elements: 4
Operating Temperature: -55°C~+125°C
Number of Bits per Element: 1
Package: PDIP-14
Manufacturer: Texas Instruments
Voltage - Supply: 2V ~ 6V
Input Type: -
Mounting Type: Through Hole
Packaging: Tube
Package / Case: 14-DIP (0.300", 7.62mm)
Part Status: Active
Current - Output High, Low: 7.8mA, 7.8mA
Series: 74HC
Supplier Device Package: 14-PDIP
Logic Type: Buffer, Non-Inverting
Base Part Number: 74HC125
detail: Buffer, Non-Inverting 4 Element 1 Bit per Element 3-State Output 14-PDIP
