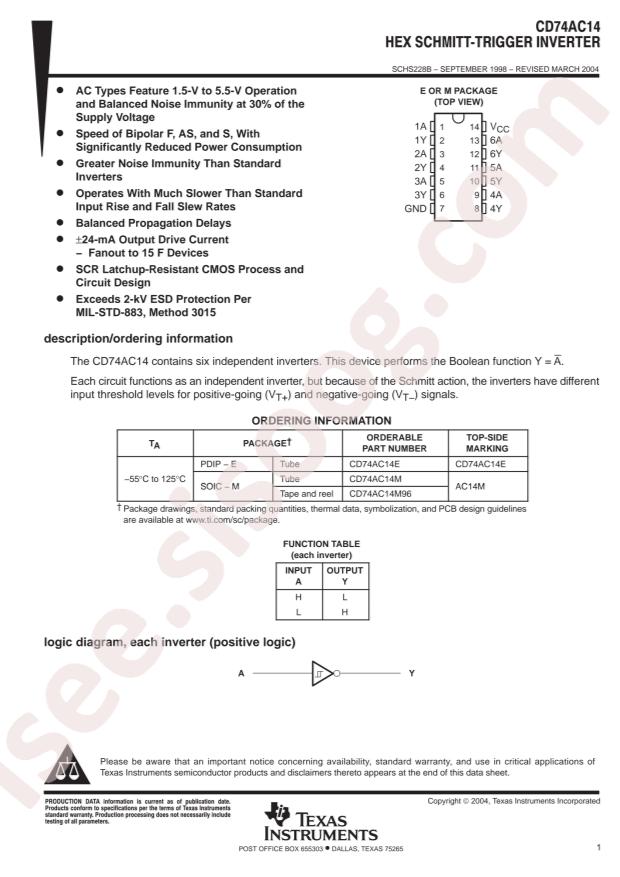

CD74AC14E دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
CD74AC14E
|
|
حجم فایل
|
73.593
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
13
|
مشخصات فنی
-
RoHS:
true
-
Series:
74AC
-
Category:
Logic ICs/Inverters
-
Datasheet:
Texas Instruments CD74AC14E
-
Input Type:
Schmitt Trigger
-
Sink Current:
24mA
-
Source Current:
24mA
-
Number of Inputs:
6
-
Number of Circuits:
6
-
Supply Current (Max):
4uA
-
Low level range (VIL):
1.6V
-
Max Propagation Delay:
10.5ns@5V,50pF
-
Operating Temperature:
-55°C~+125°C
-
High level range (VIH):
3.4V
-
Supply Voltage(Single):
1.5V~5.5V
-
Package:
PDIP-14
-
Manufacturer:
Texas Instruments
-
Mounting Type:
Through Hole
-
Logic Level - Low:
1.6V
-
Current - Quiescent (Max):
4µA
-
Voltage - Supply:
1.5V ~ 5.5V
-
Packaging:
Tube
-
Package / Case:
14-DIP (0.300", 7.62mm)
-
Logic Level - High:
3.4V
-
Part Status:
Active
-
Current - Output High, Low:
24mA, 24mA
-
Features:
Schmitt Trigger
-
Base Part Number:
74AC14
-
Supplier Device Package:
14-PDIP
-
Logic Type:
Inverter
-
Max Propagation Delay @ V, Max CL:
10.5ns @ 5V, 50pF
-
detail:
Inverter IC 6 Channel Schmitt Trigger 14-PDIP
