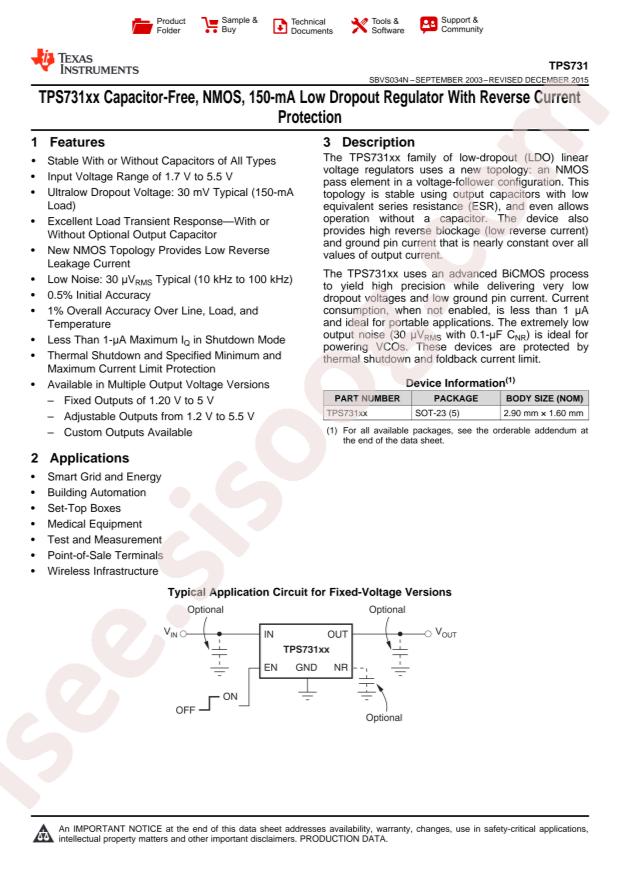

TPS73130DBVT دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPS73130DBVT
|
|
حجم فایل
|
94.635
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
30
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Texas Instruments TPS73130DBVT
-
Output Current:
150mA
-
Output Voltage:
3V
-
Dropout Voltage:
0.1V@(150mA)
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
5.5V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
550uA
-
Package:
SOT-23-5
-
Manufacturer:
Texas Instruments
-
Current - Supply (Max):
750µA
-
Output Configuration:
Positive
-
Package / Case:
SC-74A, SOT-753
-
Packaging:
Cut Tape (CT)
-
Protection Features:
Over Current, Over Temperature, Short Circuit, Reverse Polarity
-
Number of Regulators:
1
-
Part Status:
Active
-
Current - Quiescent (Iq):
550µA
-
Supplier Device Package:
SOT-23-5
-
Voltage - Input (Max):
5.5V
-
Voltage - Output (Min/Fixed):
3V
-
Mounting Type:
Surface Mount
-
PSRR:
58dB ~ 37dB (100Hz ~ 10kHz)
-
Base Part Number:
TPS731
-
Series:
-
-
Output Type:
Fixed
-
Control Features:
Enable
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
0.1V @ 150mA
-
Current - Output:
150mA
-
detail:
Linear Voltage Regulator IC 1 Output 150mA SOT-23-5
