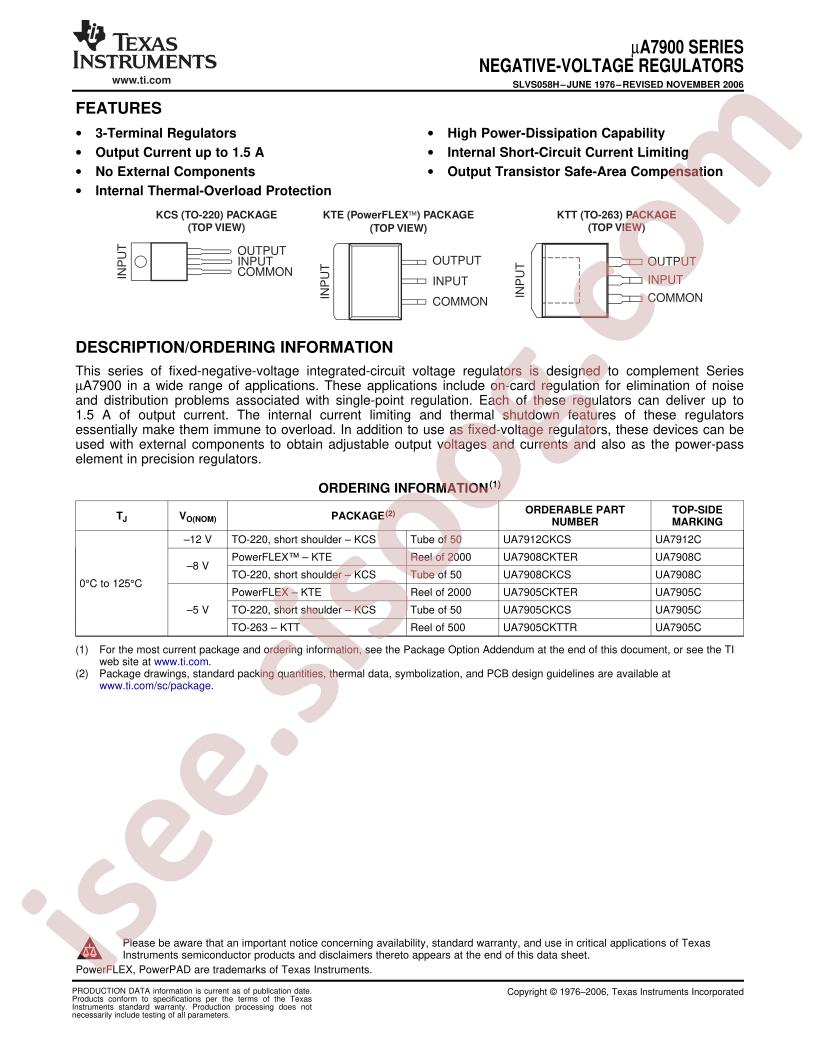

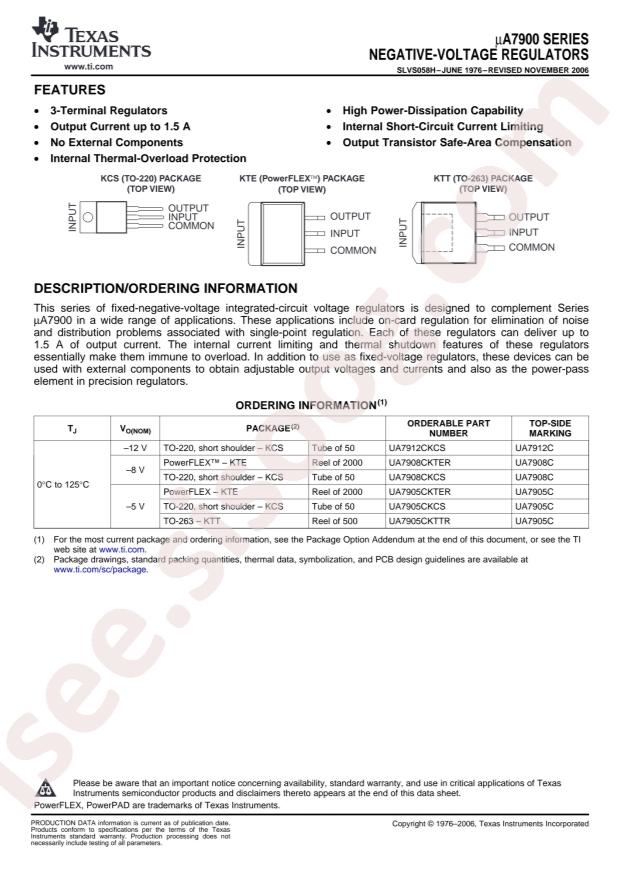

دیتاشیت UA7905CKTTR
مشخصات دیتاشیت
| نام دیتاشیت |
UA7900 Series
|
| حجم فایل |
839.027
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
13
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Texas Instruments UA7905CKTTR
-
Output Current:
1.5A
-
Output Voltage:
5V
-
Dropout Voltage:
1.1V@(1A)
-
Output Polarity:
Negative
-
Number of Outputs:
1
-
Maximum Input Voltage:
25V
-
Operating Temperature:
0°C~+125°C
-
Power Supply Rejection Ratio (PSRR):
60dB@(120Hz)
-
Package:
TO-263-3
-
Manufacturer:
Texas Instruments
-
Voltage - Input (Max):
-25V
-
Output Configuration:
Negative
-
Base Part Number:
UA790
-
Voltage - Output (Min/Fixed):
-5V
-
Protection Features:
Over Current, Over Temperature, Short Circuit
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
PSRR:
60dB (120Hz)
-
Supplier Device Package:
DDPAK/TO-263-3
-
Package / Case:
TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
-
Number of Regulators:
1
-
Part Status:
Active
-
Output Type:
Fixed
-
Control Features:
-
-
Voltage - Output (Max):
-
-
Mounting Type:
Surface Mount
-
Voltage Dropout (Max):
1.1V @ 1A
-
Current - Output:
1.5A
-
detail:
Linear Voltage Regulator IC 1 Output 1.5A DDPAK/TO-263-3
