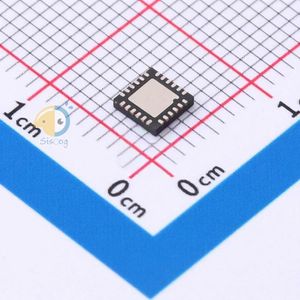

LED7706TR دیتاشیت

LED7706TR

مشخصات دیتاشیت

نام دیتاشیت LED7706TR
حجم فایل 72.622 کیلوبایت
نوع فایل pdf
تعداد صفحات 46

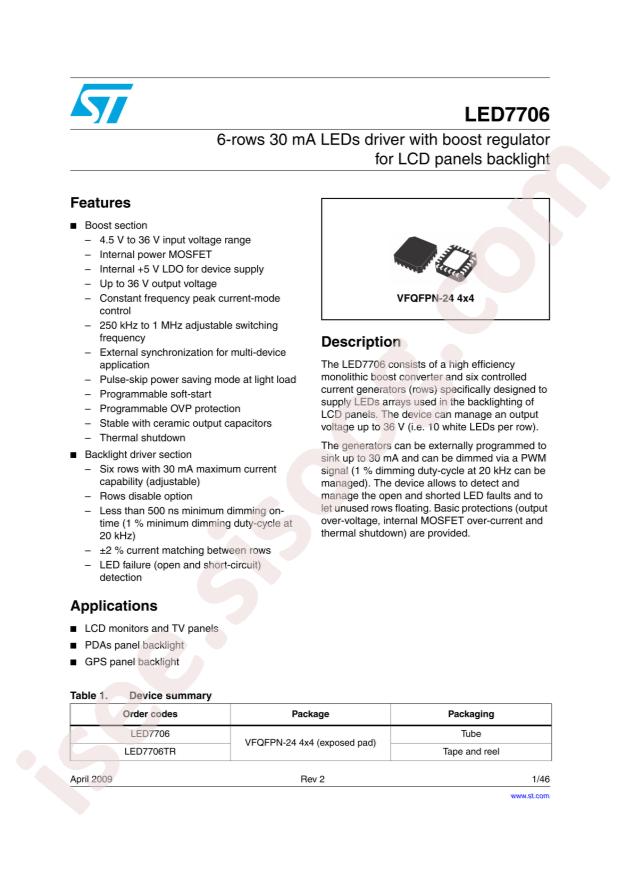

مشاهده دیتاشیت LED7706TR

دانلود دیتاشیت

سایر مستندات

LED7706 46 pages

مشخصات فنی

  • RoHS: true
  • Category: Nixie Tube Driver/LED Driver/LED Drivers
  • Datasheet: STMicroelectronics LED7706TR
  • Package: WQFN-24-EP(4x4)
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: DC DC Regulator
  • Topology: Step-Up (Boost)
  • Internal Switch(s): Yes
  • Number of Outputs: 6
  • Voltage - Supply (Min): 4.5V
  • Voltage - Supply (Max): 36V
  • Voltage - Output: 36V
  • Current - Output / Channel: 30mA
  • Frequency: 250kHz ~ 1MHz
  • Dimming: PWM
  • Applications: Backlight
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: 24-VFQFN Exposed Pad
  • Supplier Device Package: 24-VFQFPN (4x4)
  • Base Part Number: LED7706
  • detail: LED Driver IC 6 Output DC DC Regulator Step-Up (Boost) PWM Dimming 30mA 24-VFQFPN (4x4)
