CD(54,74)HC(T)4075 Datasheet دیتاشیت

CD(54,74)HC(T)4075 Datasheet

مشخصات دیتاشیت

نام دیتاشیت CD(54,74)HC(T)4075 Datasheet
حجم فایل 1187.978 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

دانلود دیتاشیت CD(54,74)HC(T)4075 Datasheet

دانلود دیتاشیت

سایر مستندات

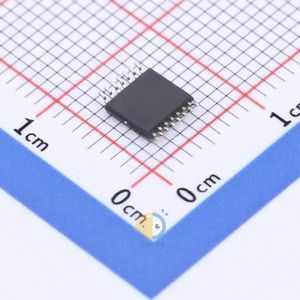

CD74HC4075PWR 29 pages

مشخصات فنی

  • RoHS: true
  • Series: 74HC
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments CD74HC4075E
  • Sink Current: 5.2mA
  • Source Current: 5.2mA
  • Supply Voltage: 2V~6V
  • Logic Gate Type: ORGate
  • Number of Channels: 3
  • Low Level Range (VIL): 0.5V~1.8V
  • Operating Temperature: -55°C~+125°C
  • High Level Range (VIH): 1.5V~4.2V
  • Propagation Delay Time: 17ns@6V,50pF
  • Quiescent Current (Max): 2uA
  • Package: PDIP-14
  • Manufacturer: Texas Instruments
  • Mounting Type: Through Hole
  • Logic Level - Low: 0.5V ~ 1.8V
  • Current - Quiescent (Max): 2µA
  • Voltage - Supply: 2V ~ 6V
  • Number of Circuits: 3
  • Packaging: Tube
  • Package / Case: 14-DIP (0.300", 7.62mm)
  • Logic Level - High: 1.5V ~ 4.2V
  • Part Status: Active
  • Current - Output High, Low: 5.2mA, 5.2mA
  • Features: -
  • Base Part Number: 74HC4075
  • Supplier Device Package: 14-PDIP
  • Number of Inputs: 3
  • Logic Type: OR Gate
  • Max Propagation Delay @ V, Max CL: 17ns @ 6V, 50pF
  • detail: OR Gate IC 3 Channel 14-PDIP
