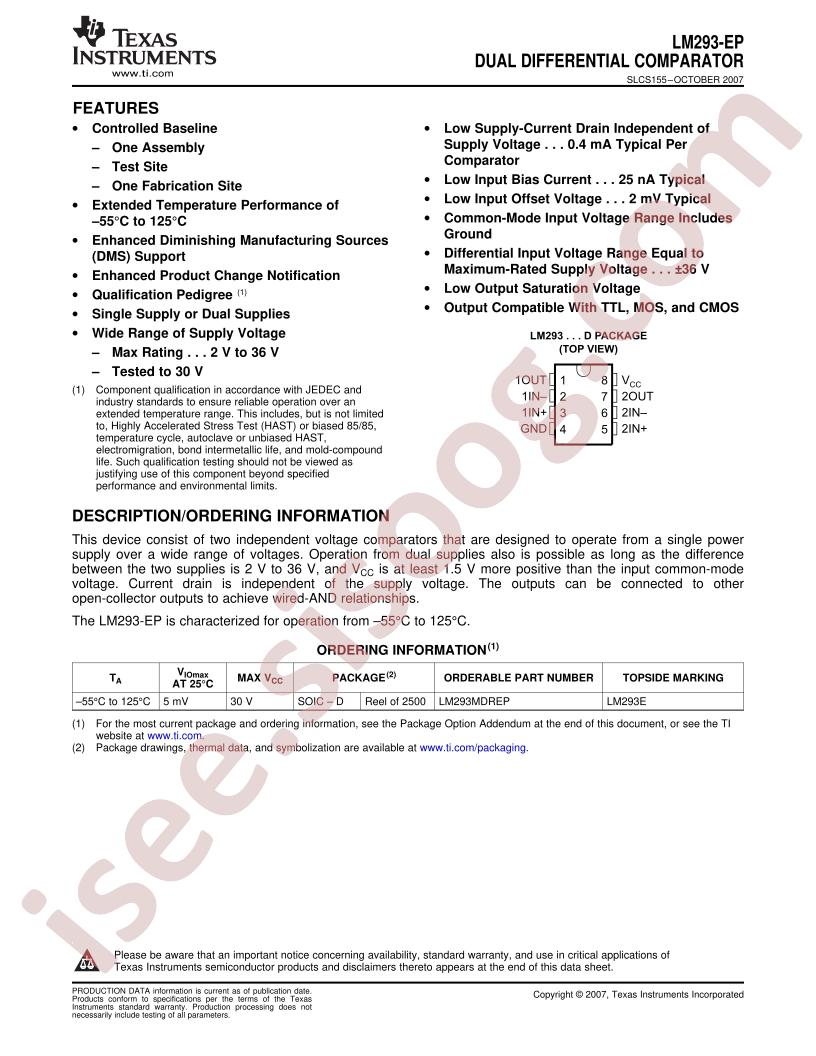

دیتاشیت LM293MDREP
مشخصات دیتاشیت
| نام دیتاشیت |
LM293-EP
|
| حجم فایل |
836.498
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
9
|
مشخصات
-
RoHS:
true
-
Category:
Operational Amplifier/Comparator/Comparators
-
Datasheet:
Texas Instruments LM293MDREP
-
Output Type:
开集
-
Supply Voltage:
2V~36V;1V~18V
-
Number of Elements:
-
-
Operating Temperature:
-55°C~+125°C
-
Input Bias Current (Ib):
0.25uA
-
Input Offset Voltage (Vos):
5mV
-
Input Hysteresis Voltage (Vhys):
-
-
Common Mode Rejection Ratio (CMRR):
-
-
Package:
SOIC-8
-
Manufacturer:
Texas Instruments
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Propagation Delay (Max):
-
-
Current - Quiescent (Max):
2.5mA
-
Voltage - Input Offset (Max):
5mV @ 30V
-
Part Status:
Active
-
Current - Output (Typ):
20mA
-
Current - Input Bias (Max):
0.25µA @ 5V
-
Packaging:
Cut Tape (CT)
-
Type:
Differential
-
CMRR, PSRR (Typ):
-
-
Voltage - Supply, Single/Dual (±):
2V ~ 36V, ±1V ~ 18V
-
Series:
-
-
Base Part Number:
LM293
-
Supplier Device Package:
8-SOIC
-
Mounting Type:
Surface Mount
-
Hysteresis:
-
-
detail:
Comparator Differential CMOS, MOS, Open-Collector, TTL 8-SOIC
