STGB15M65DF2 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | STGB15M65DF2 |
|---|---|
| حجم فایل | 60.934 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 19 |
دانلود دیتاشیت STGB15M65DF2 |
دانلود دیتاشیت |
|---|
سایر مستندات

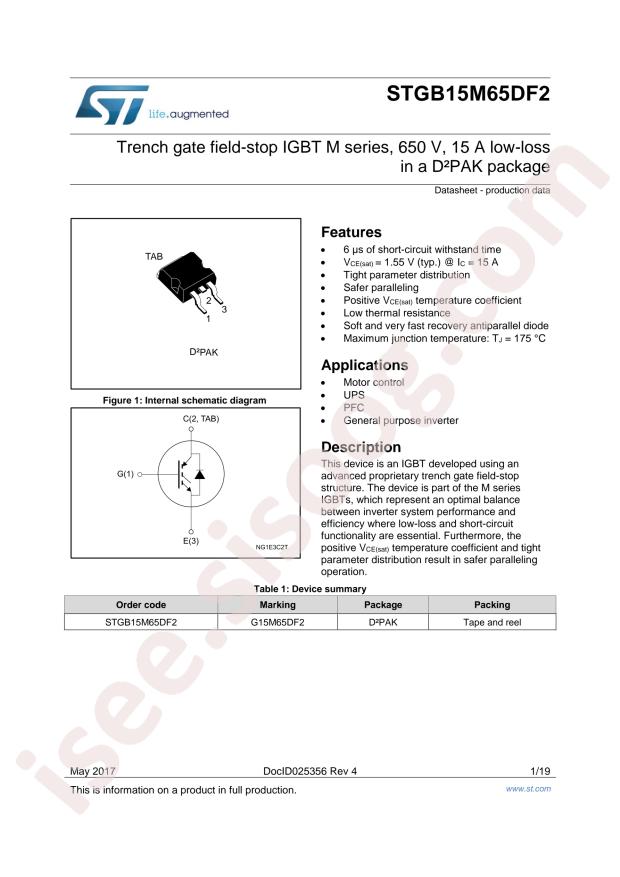

STGB15M65DF2 Datasheet 19 pages
مشخصات فنی
- RoHS: true
- Type: Trench Field Stop
- Category: Triode/MOS Tube/Transistor/IGBTs
- Datasheet: STMicroelectronics STGB15M65DF2
- Operating Temperature: -55°C~+175°C@(Tj)
- Collector Current (Ic): 30A
- Power Dissipation (Pd): 136W
- Input Capacitance (Cies@Vce): -
- Turn?on Switching Loss (Eon): 0.09mJ
- Pulsed Collector Current (Icm): 60A
- Turn?off Switching Loss (Eoff): 0.45mJ
- Diode Reverse Recovery Time (Trr): 142ns
- Collector-Emitter Breakdown Voltage (Vces): 650V
- Gate-Emitter Threshold Voltage (Vge(th)@Ic): -
- Package: D2PAK
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 650V
- Current - Collector (Ic) (Max): 30A
- Current - Collector Pulsed (Icm): 60A
- Vce(on) (Max) @ Vge, Ic: 2V @ 15V, 15A
- Power - Max: 136W
- Switching Energy: 90µJ (on), 450µJ (off)
- Input Type: Standard
- Gate Charge: 45nC
- Td (on/off) @ 25°C: 24ns/93ns
- Test Condition: 400V, 15A, 12Ohm, 15V
- Reverse Recovery Time (trr): 142ns
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: D2PAK
- Base Part Number: STGB15
- detail: IGBT Trench Field Stop 650V 30A 136W Surface Mount D2PAK
