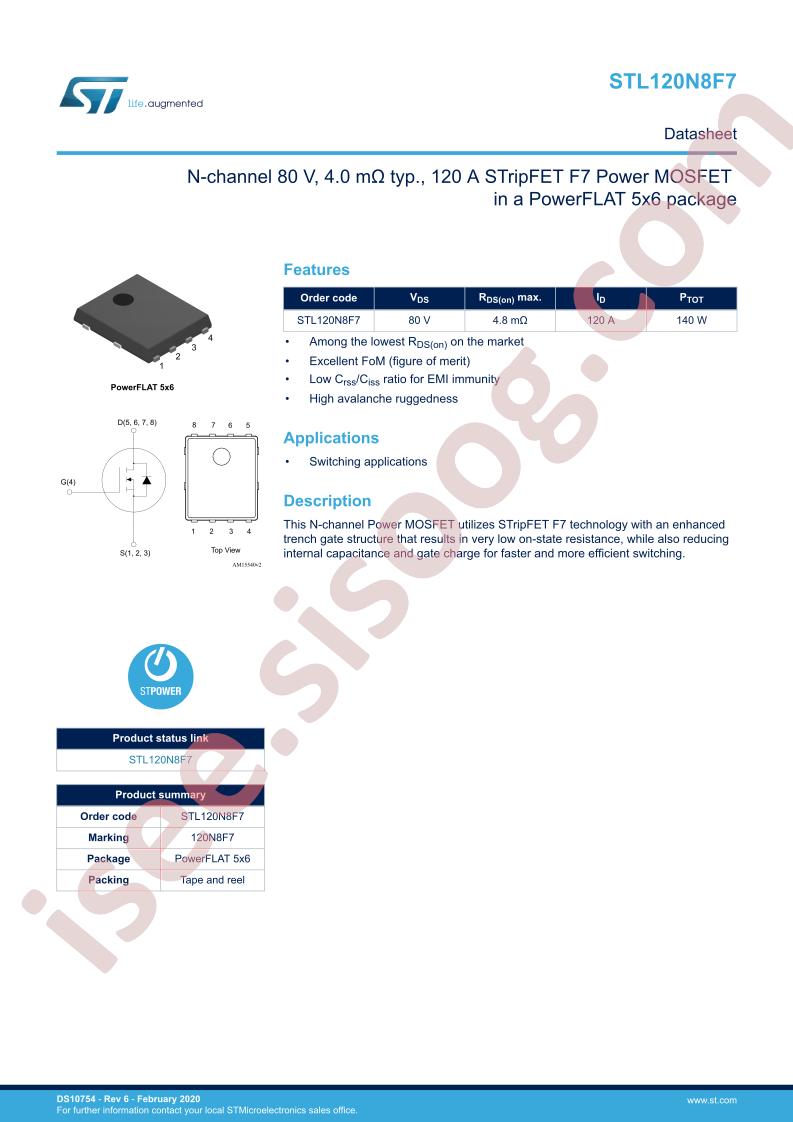

STL120N8F7 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STL120N8F7
|
|
حجم فایل
|
851.467
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
16
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
STripFET™ F7
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
80V
-
Current - Continuous Drain (Id) @ 25°C:
120A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
4.4mOhm @ 11.5A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
60nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
4570pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
4.8W (Ta), 140W (Tc)
-
Operating Temperature:
-55°C ~ 175°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
PowerFlat™ (5x6)
-
Package / Case:
8-PowerVDFN
-
Base Part Number:
STL120
-
detail:
N-Channel 80V 120A (Tc) 4.8W (Ta), 140W (Tc) Surface Mount PowerFlat™ (5x6)
