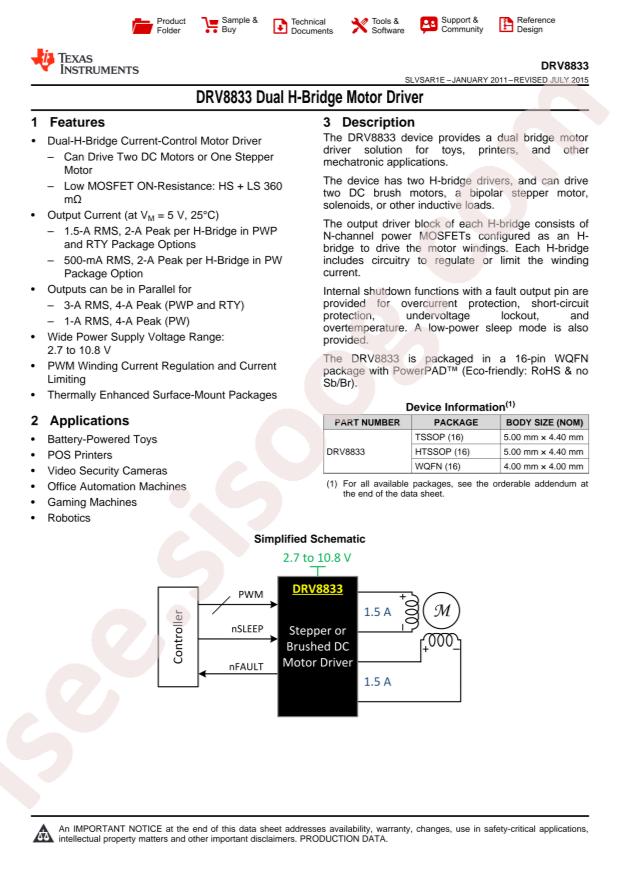

DRV8833RTYR دیتاشیت

DRV8833RTYR

مشخصات دیتاشیت

نام دیتاشیت DRV8833RTYR
حجم فایل 90.416 کیلوبایت
نوع فایل pdf
تعداد صفحات 31

دانلود دیتاشیت DRV8833RTYR

دانلود دیتاشیت

سایر مستندات

DRV8833 Datasheet 32 pages

مشخصات فنی

  • RoHS: true
  • Type: Brush DC Motor
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: Texas Instruments DRV8833RTYR
  • Interface: PWM
  • Output Current: 1.5A
  • Supply Voltage: 2.7V~10.8V
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Package: QFN-16-EP(4x4)
  • Manufacturer: Texas Instruments
  • Applications: DC Motors, General Purpose, Solenoids
  • Motor Type - AC, DC: Brushed DC
  • Motor Type - Stepper: Bipolar
  • Technology: NMOS
  • Series: -
  • Voltage - Supply: 2.7V ~ 10.8V
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Packaging: Cut Tape (CT)
  • Package / Case: 16-WQFN Exposed Pad
  • Step Resolution: -
  • Voltage - Load: 2.7V ~ 10.8V
  • Part Status: Active
  • Output Configuration: Half Bridge (4)
  • Base Part Number: DRV8833
  • Supplier Device Package: 16-QFN (4x4)
  • Mounting Type: Surface Mount
  • Current - Output: 1.5A
  • detail: Bipolar Motor Driver NMOS PWM 16-QFN (4x4)
