دیتاشیت LM340LAZ-5.0/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LM(1,3)40L |
|---|---|
| حجم فایل | 564.227 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 16 |

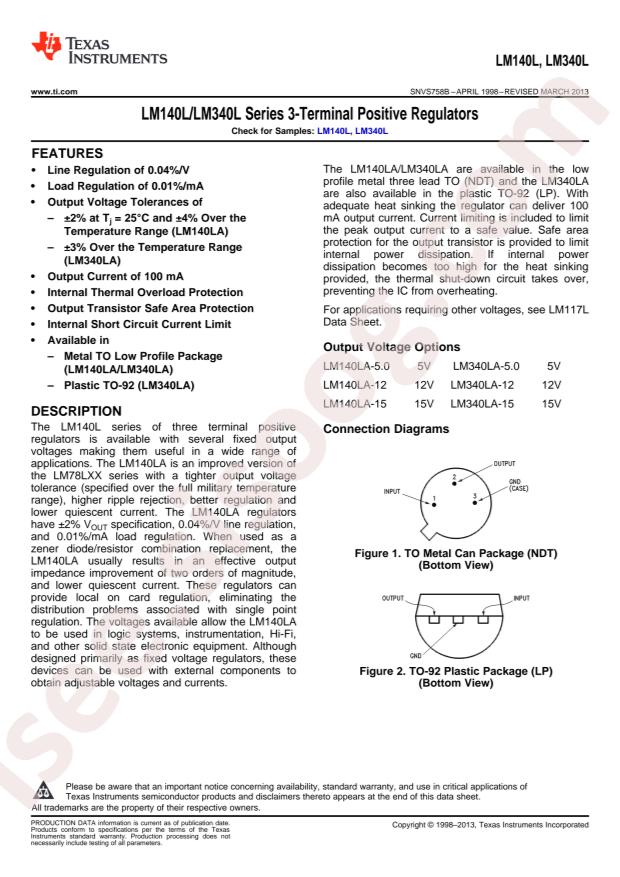

دانلود دیتاشیت LM(1,3)40L |
LM(1,3)40L Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments LM340LAZ-5.0/NOPB
- Output Type: Fixed
- Output Current: 100mA
- Output Voltage: 5V
- Dropout Voltage: 2V@(1A)
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 35V
- Operating Temperature: 0°C~+70°C
- Quiescent Current (Ground Current): 6mA
- Power Supply Rejection Ratio (PSRR): 70dB@(120Hz)
- Package: TO-92-3
- Manufacturer: Texas Instruments
- Voltage - Input (Max): 35V
- Current - Quiescent (Iq): 6mA
- Output Configuration: Positive
- Base Part Number: LM340
- Voltage - Output (Min/Fixed): 5V
- Protection Features: Over Current, Short Circuit
- Series: -
- Packaging: Bulk
- PSRR: 70dB (120Hz)
- Supplier Device Package: TO-92-3
- Package / Case: TO-226-3, TO-92-3 (TO-226AA)
- Number of Regulators: 1
- Part Status: Active
- Control Features: -
- Voltage - Output (Max): -
- Mounting Type: Through Hole
- Voltage Dropout (Max): 2V @ 1A
- Current - Output: 100mA
- detail: Linear Voltage Regulator IC 1 Output 100mA TO-92-3
