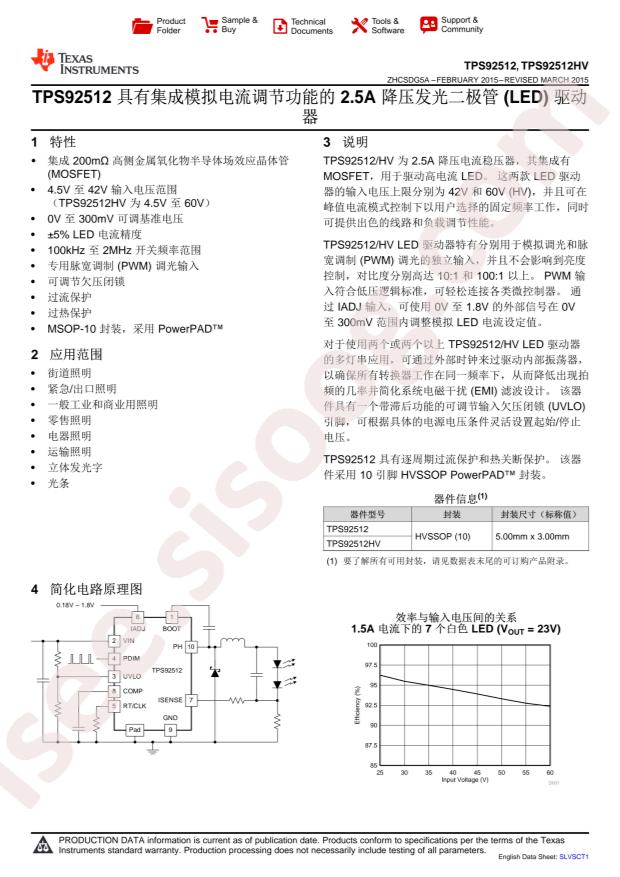

TPS92512DGQT دیتاشیت

TPS92512DGQT

مشخصات دیتاشیت

نام دیتاشیت TPS92512DGQT
حجم فایل 89.658 کیلوبایت
نوع فایل pdf
تعداد صفحات 31

دانلود دیتاشیت TPS92512DGQT

دانلود دیتاشیت

سایر مستندات

TPS92512(HV) Datasheet 30 pages

مشخصات فنی

  • RoHS: true
  • Category: Nixie Tube Driver/LED Driver/LED Drivers
  • Datasheet: Texas Instruments TPS92512DGQT
  • Package: MSOP-10-EP
  • Manufacturer: Texas Instruments
  • Internal Switch(s): Yes
  • Voltage - Output: 45V
  • Voltage - Supply (Max): 42V
  • Part Status: Active
  • Applications: Lighting
  • Voltage - Supply (Min): 4.5V
  • Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
  • Frequency: 2MHz
  • Packaging: Cut Tape (CT)
  • Type: DC DC Regulator
  • Dimming: PWM
  • Topology: Step-Down (Buck)
  • Series: -
  • Base Part Number: TPS925
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Supplier Device Package: 10-MSOP-PowerPad
  • Mounting Type: Surface Mount
  • Number of Outputs: 1
  • Current - Output / Channel: 2.5A (Switch)
  • detail: LED Driver IC 1 Output DC DC Regulator Step-Down (Buck) PWM Dimming 2.5A (Switch) 10-MSOP-PowerPad
