VND7E050AJTR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | VND7E050AJTR |
|---|---|
| حجم فایل | 63.913 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 48 |
دانلود دیتاشیت VND7E050AJTR |
دانلود دیتاشیت |
|---|
سایر مستندات

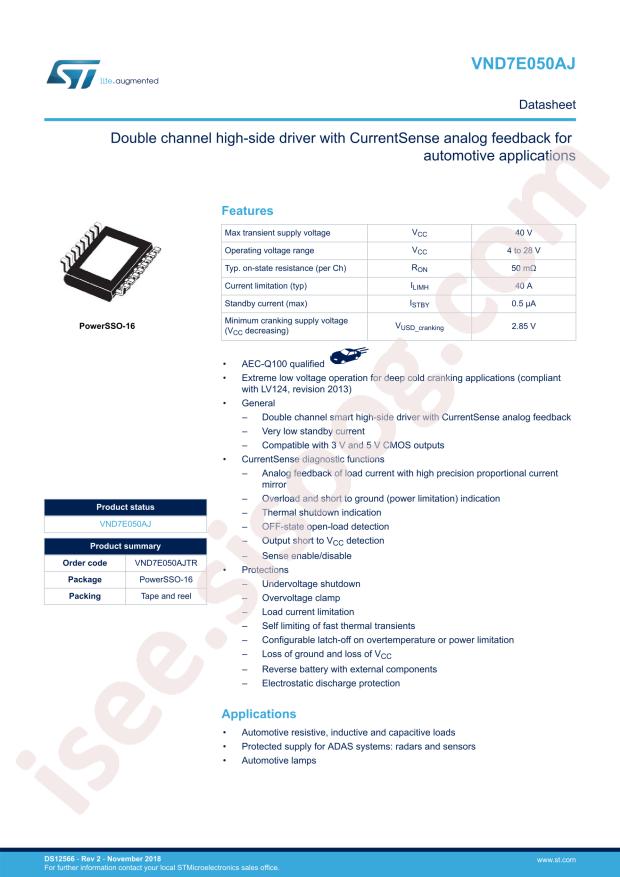

VND7E050AJ Datasheet 48 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Power Distribution Switches
- Datasheet: STMicroelectronics VND7E050AJTR
- Input Voltage: 4V~28V
- Output Current: 9A
- Number of Outputs: 2
- Resistor On-State: 50mΩ
- Operating Temperature -: -40°C~+150°C
- Package: PowerSSO-16
- Manufacturer: STMicroelectronics
- Series: Automotive, AEC-Q100, VIPOWER™
- Packaging: Cut Tape (CT)
- Part Status: Active
- Switch Type: General Purpose
- Ratio - Input:Output: 1:1
- Output Configuration: High Side
- Output Type: N-Channel
- Interface: -
- Voltage - Load: 4V ~ 28V
- Voltage - Supply (Vcc/Vdd): -
- Current - Output (Max): 9A
- Rds On (Typ): 50mOhm
- Input Type: Non-Inverting
- Features: Auto Restart, Status Flag
- Fault Protection: Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, Short Circuit, UVLO
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerSSO-16
- Package / Case: 16-PowerLFSOP (0.154", 3.90mm Width)
- detail: Power Switch/Driver 1:1 N-Channel 9A PowerSSO-16
