دیتاشیت TPS7B6850QPWPRQ1
مشخصات دیتاشیت

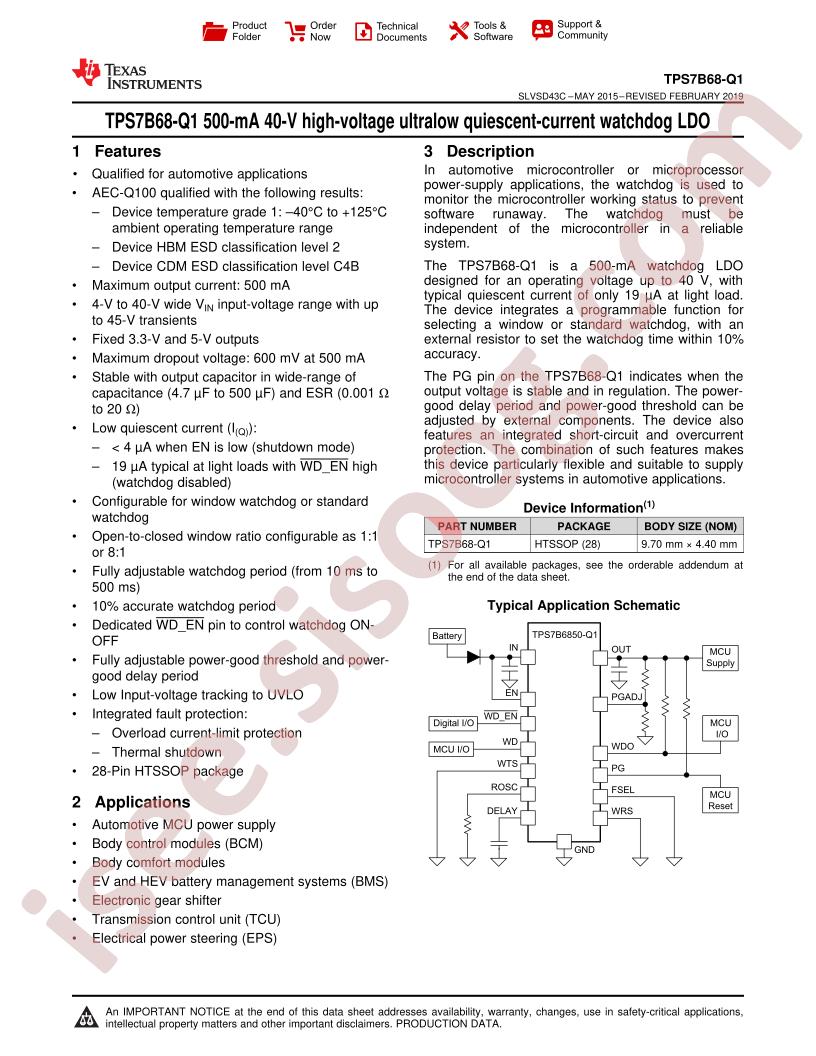

| نام دیتاشیت | TPS7B6833-Q1, TPS7B6850 Datasheet |
|---|---|
| حجم فایل | 2061.978 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 35 |
دانلود دیتاشیت TPS7B6833-Q1, TPS7B6850 Datasheet |
TPS7B6833-Q1, TPS7B6850 Datasheet Datasheet |
|---|
مشخصات
- Current - Supply (Max): 98µA
- Output Configuration: Positive
- Package / Case: 28-PowerTSSOP (0.173", 4.40mm Width)
- Packaging: Cut Tape (CT)
- Protection Features: Over Current, Over Temperature
- Number of Regulators: 1
- Part Status: Active
- Current - Quiescent (Iq): 42µA
- Operating Temperature: -40°C ~ 125°C (TA)
- Supplier Device Package: 28-HTSSOP
- Manufacturer: Texas Instruments
- Voltage - Input (Max): 40V
- Voltage - Output (Min/Fixed): 5V
- Mounting Type: Surface Mount
- PSRR: 60dB ~ 40dB (100Hz ~ 100kHz)
- Base Part Number: TPS7B6
- Series: Automotive, AEC-Q100
- Output Type: Fixed
- Control Features: Enable, Power Good, Watchdog
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.6V @ 500mA
- Current - Output: 500mA
- detail: Linear Voltage Regulator IC 1 Output 500mA 28-HTSSOP
