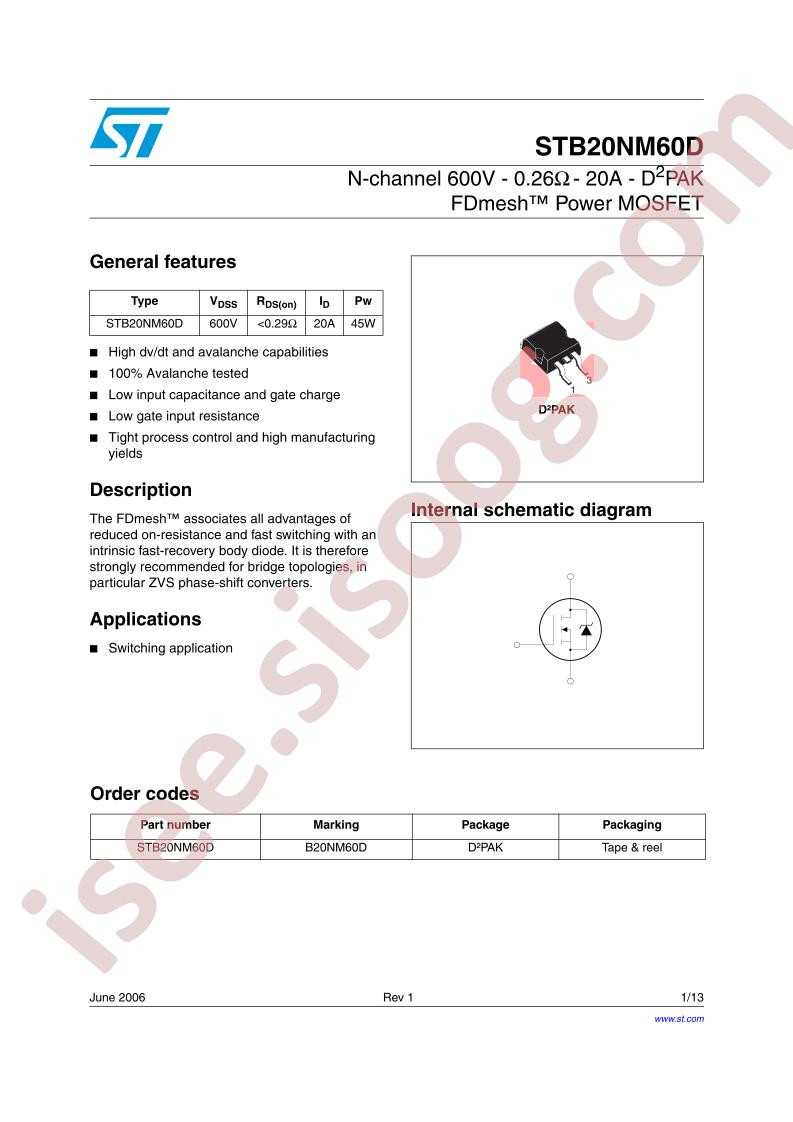

STB20NM60D دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STB20NM60D
|
|
حجم فایل
|
286.737
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
13
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
FDmesh™
-
Packaging:
Cut Tape (CT)
-
Part Status:
Discontinued at Digi-Key
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
600V
-
Current - Continuous Drain (Id) @ 25°C:
20A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
290mOhm @ 10A, 10V
-
Vgs(th) (Max) @ Id:
5V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
52nC @ 10V
-
Vgs (Max):
±30V
-
Input Capacitance (Ciss) (Max) @ Vds:
1300pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
192W (Tc)
-
Operating Temperature:
-65°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
D2PAK
-
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
-
Base Part Number:
STB20N
-
detail:
N-Channel 600V 20A (Tc) 192W (Tc) Surface Mount D2PAK
