دیتاشیت LM317LZ/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LM317L Datasheet |
|---|---|
| حجم فایل | 2328.123 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 39 |

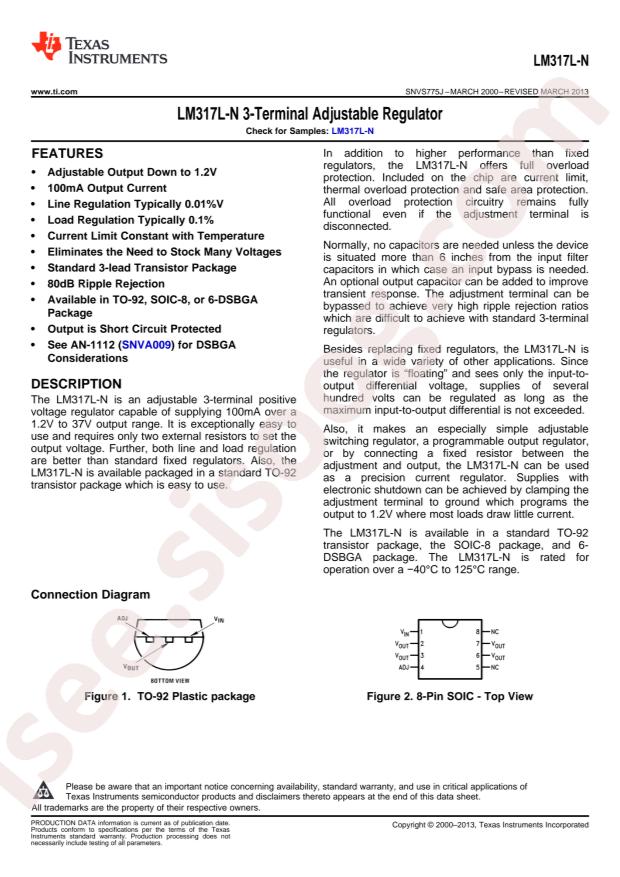

دانلود دیتاشیت LM317L Datasheet |
LM317L Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments LM317LZ/NOPB
- Output Type: Adjustable
- Output Current: 100mA
- Output Voltage: 1.2V~37V
- Dropout Voltage: -
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 40V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 5mA
- Power Supply Rejection Ratio (PSRR): 80dB@(120Hz)
- Package: TO-92-3
- Manufacturer: Texas Instruments
- Voltage - Input (Max): 40V
- Output Configuration: Positive
- Base Part Number: LM317
- Voltage - Output (Min/Fixed): 1.2V
- Protection Features: Over Current, Over Temperature, Short Circuit
- Series: -
- Packaging: Bulk
- PSRR: 80dB ~ 65dB (120Hz)
- Supplier Device Package: TO-92-3
- Package / Case: TO-226-3, TO-92-3 (TO-226AA)
- Number of Regulators: 1
- Part Status: Active
- Control Features: -
- Voltage - Output (Max): 37V
- Mounting Type: Through Hole
- Voltage Dropout (Max): -
- Current - Output: 100mA
- detail: Linear Voltage Regulator IC 1 Output 100mA TO-92-3
