دیتاشیت TPS7B6750QPWPRQ1

مشخصات دیتاشیت

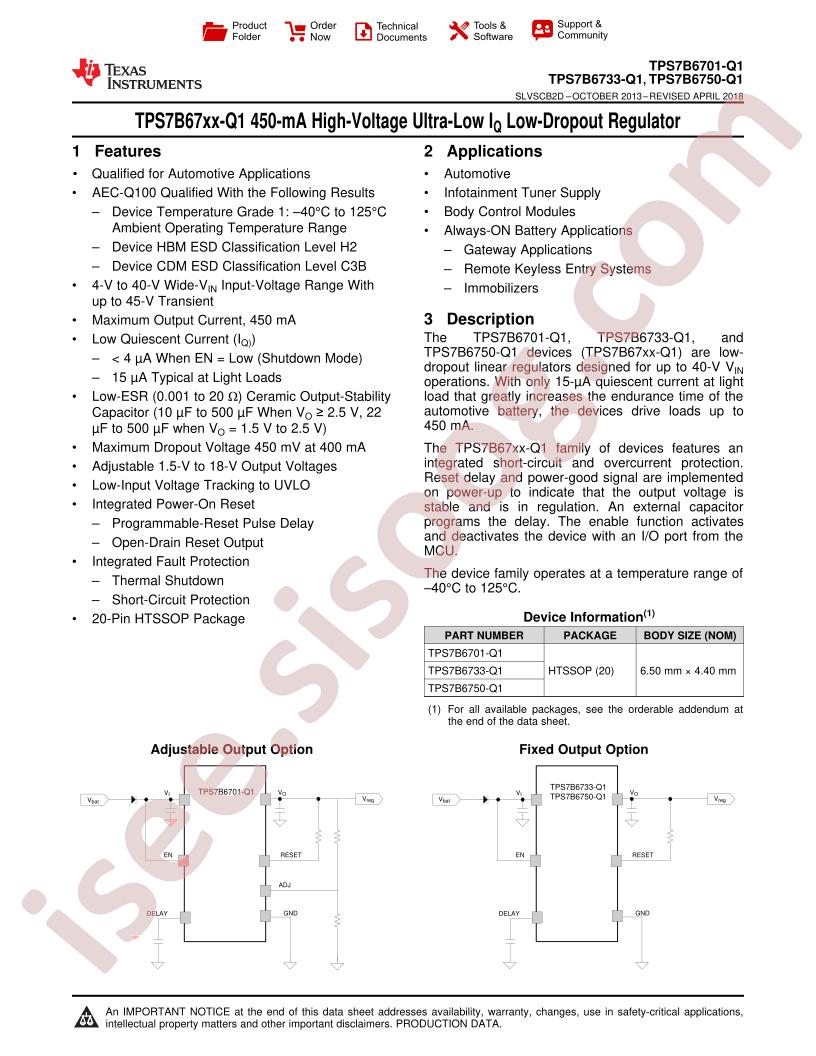

دانلود دیتاشیت TPS7B67xx(A,B)-Q1	TPS7B67xx(A,B)-Q1 Datasheet

RoHS: true
Category: Power Supply Chip/Linear Voltage Regulators (LDO)
Datasheet: Texas Instruments TPS7B6750QPWPRQ1
Package: TSSOP-20-EP
Manufacturer: Texas Instruments
Current - Supply (Max): 35µA
Output Configuration: Positive
Package / Case: 20-PowerTSSOP (0.173", 4.40mm Width)
Packaging: Cut Tape (CT)
Protection Features: Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Number of Regulators: 1
Part Status: Active
Current - Quiescent (Iq): 25µA
Operating Temperature: -40°C ~ 150°C
Supplier Device Package: 20-HTSSOP
Voltage - Input (Max): 40V
Voltage - Output (Min/Fixed): 5V
Mounting Type: Surface Mount
PSRR: 60dB ~ 40dB (100Hz ~ 100kHz)
Base Part Number: TPS7B6
Series: Automotive, AEC-Q100
Output Type: Fixed
Control Features: Enable, Reset
Voltage - Output (Max): -
Voltage Dropout (Max): 0.3V @ 200mA
Current - Output: 450mA
detail: Linear Voltage Regulator IC 1 Output 450mA 20-HTSSOP
