STV270N4F3 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|

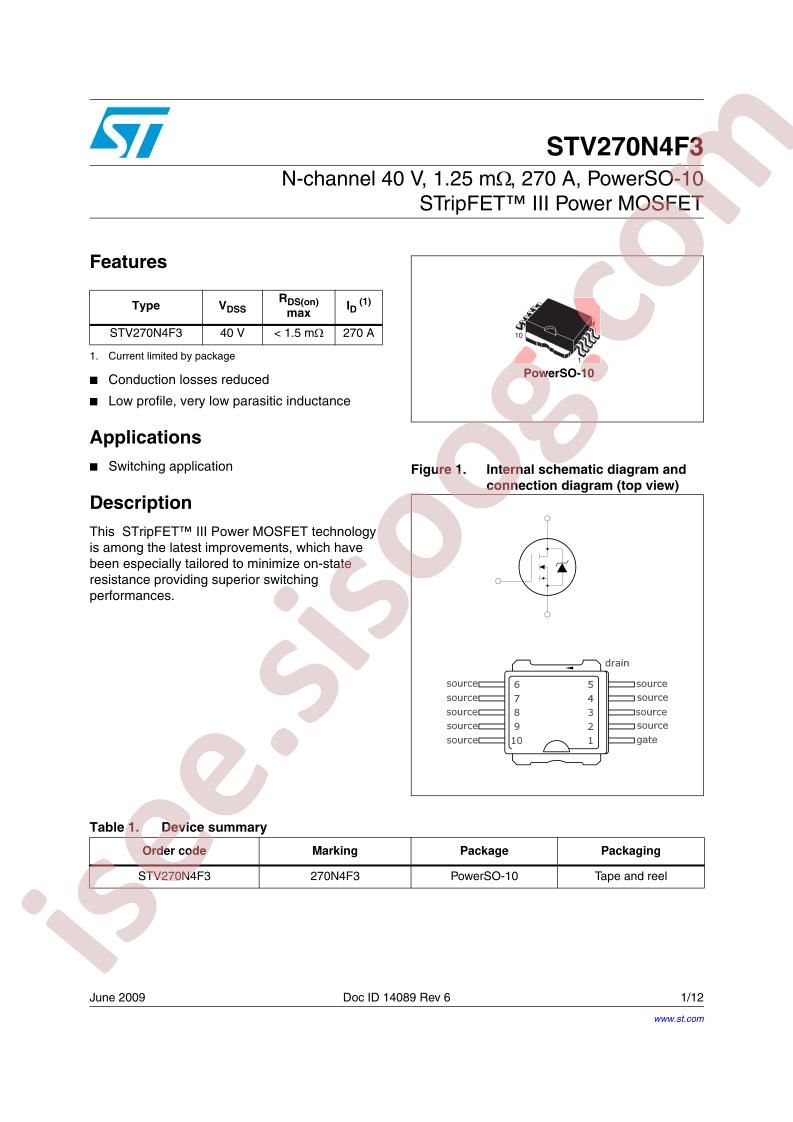

STV270N4F3
|
|
حجم فایل
|
808.473
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
12
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
STripFET™ III
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
40V
-
Current - Continuous Drain (Id) @ 25°C:
270A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
1.5mOhm @ 80A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
150nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
7500pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
300W (Tc)
-
Operating Temperature:
-55°C ~ 175°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
10-PowerSO
-
Package / Case:
PowerSO-10 Exposed Bottom Pad
-
Base Part Number:
STV270
-
detail:
N-Channel 40V 270A (Tc) 300W (Tc) Surface Mount 10-PowerSO
