دیتاشیت STGB10NB37LZT4
مشخصات دیتاشیت
| نام دیتاشیت | STG(B,P)10NB37LZ |
|---|---|
| حجم فایل | 764.96 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 15 |
دانلود دیتاشیت STG(B,P)10NB37LZ |

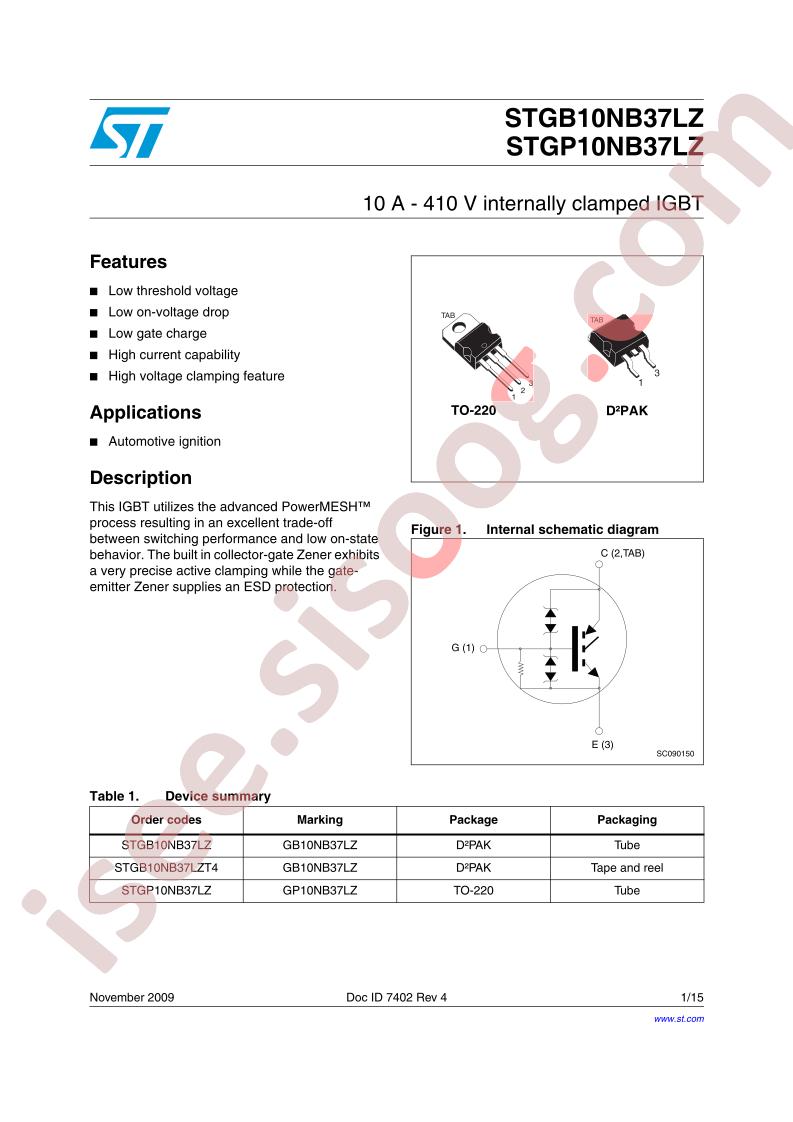

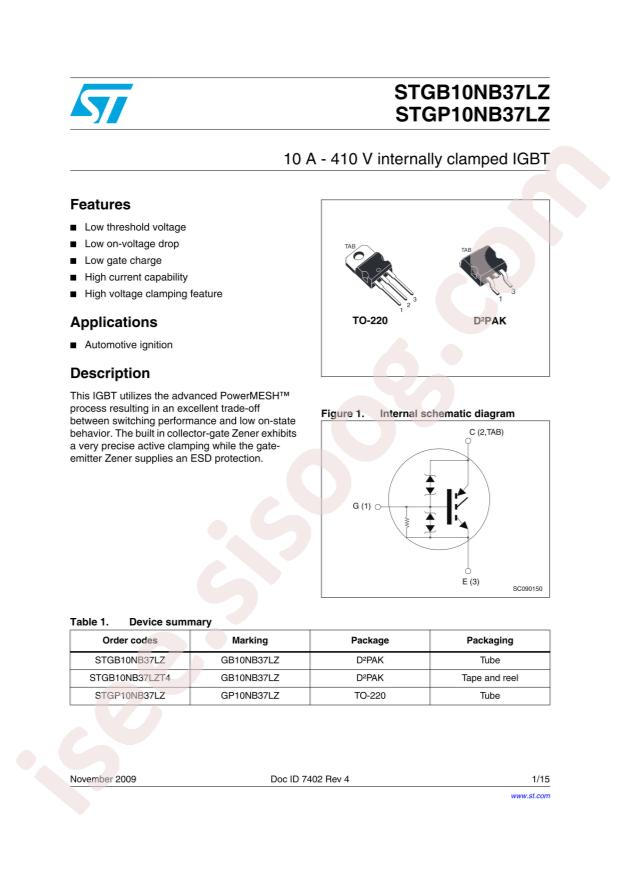

STG(B,P)10NB37LZ Datasheet |
|---|
مشخصات
- RoHS: true
- Type: -
- Category: Triode/MOS Tube/Transistor/IGBTs
- Datasheet: STMicroelectronics STGB10NB37LZT4
- Operating Temperature: -65°C~+175°C@(Tj)
- Collector Current (Ic): 20A
- Power Dissipation (Pd): 125W
- Turn?on Delay Time (Td(on)): 1.3us
- Input Capacitance (Cies@Vce): -
- Turn?on Switching Loss (Eon): 2.4mJ
- Total Gate Charge (Qg@Ic,Vge): 28nC
- Turn?off Delay Time (Td(off)): 8us
- Pulsed Collector Current (Icm): 40A
- Turn?off Switching Loss (Eoff): 5mJ
- Collector-Emitter Breakdown Voltage (Vces): 440V
- Gate-Emitter Threshold Voltage (Vge(th)@Ic): 1.8V@4.5V,10A
- Package: D2PAK
- Manufacturer: STMicroelectronics
- Series: PowerMESH™
- Packaging: Tube
- Part Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 440V
- Current - Collector (Ic) (Max): 20A
- Current - Collector Pulsed (Icm): 40A
- Vce(on) (Max) @ Vge, Ic: 1.8V @ 4.5V, 10A
- Power - Max: 125W
- Switching Energy: 2.4mJ (on), 5mJ (off)
- Input Type: Standard
- Gate Charge: 28nC
- Td (on/off) @ 25°C: 1.3µs/8µs
- Test Condition: 328V, 10A, 1kOhm, 5V
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: D2PAK
- Base Part Number: STGB10
- detail: IGBT 440V 20A 125W Surface Mount D2PAK
