TPS2111APWR 数据手册
其他文档

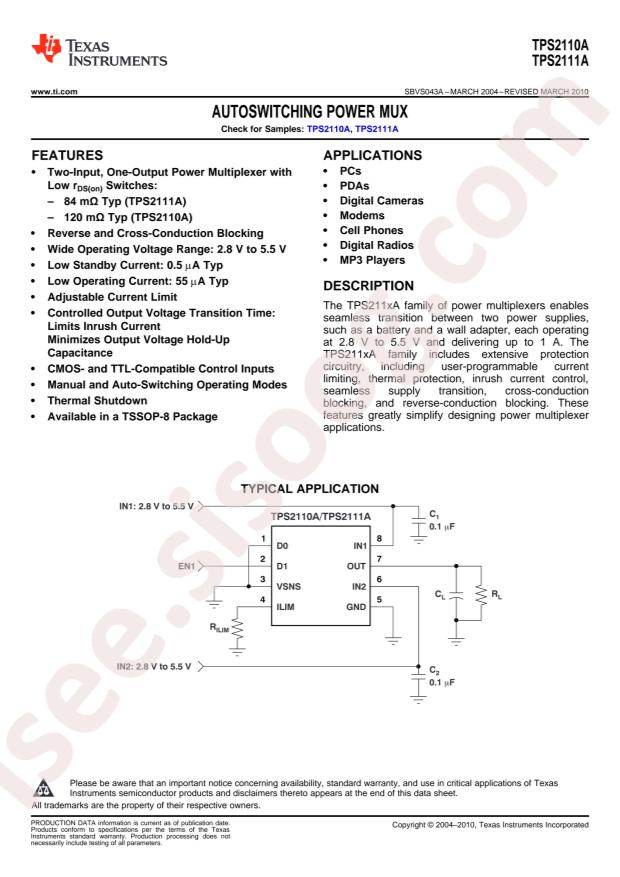

TPS2110A/11A 26 pages
技术规格
- RoHS: true
- Category: Power Supply Chip/Power Distribution Switches
- Datasheet: Texas Instruments TPS2111APWR
- Input Voltage: 2.8V~5.5V
- Output Current: 1.25A
- Operating Temperature -: -40°C~+85°C
- Package: TSSOP-8
- Manufacturer: Texas Instruments
- Internal Switch(s): Yes
- Delay Time - ON: 1ms
- Current - Output (Max): 1.25A
- Applications: Handheld/Mobile Devices
- FET Type: N-Channel
- Delay Time - OFF: 5ms
- Voltage - Supply: 2.8V ~ 5.5V
- Part Status: Active
- Operating Temperature: -40°C ~ 85°C
- Package / Case: 8-TSSOP (0.173", 4.40mm Width)
- Mounting Type: Surface Mount
- Packaging: Cut Tape (CT)
- Type: Source Selector Switch
- Ratio - Input:Output: 2:1
- Series: -
- Base Part Number: TPS211
- Current - Supply: 55µA
- Supplier Device Package: 8-TSSOP
- detail: OR Controller Source Selector Switch N-Channel 2:1 8-TSSOP
