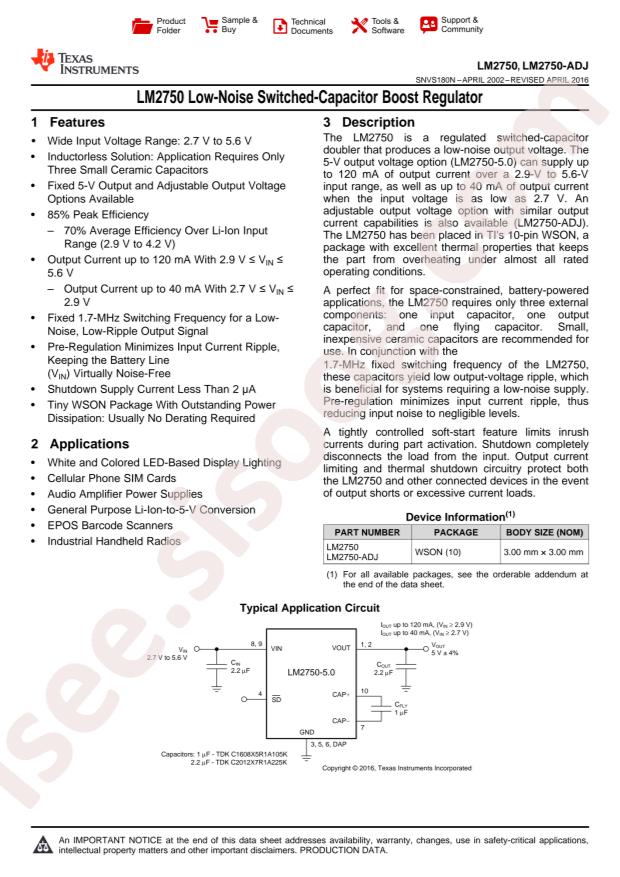

دیتاشیت LM2750SD-5.0/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LM2750 |
|---|---|
| حجم فایل | 1237.96 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 24 |
دانلود دیتاشیت LM2750 |

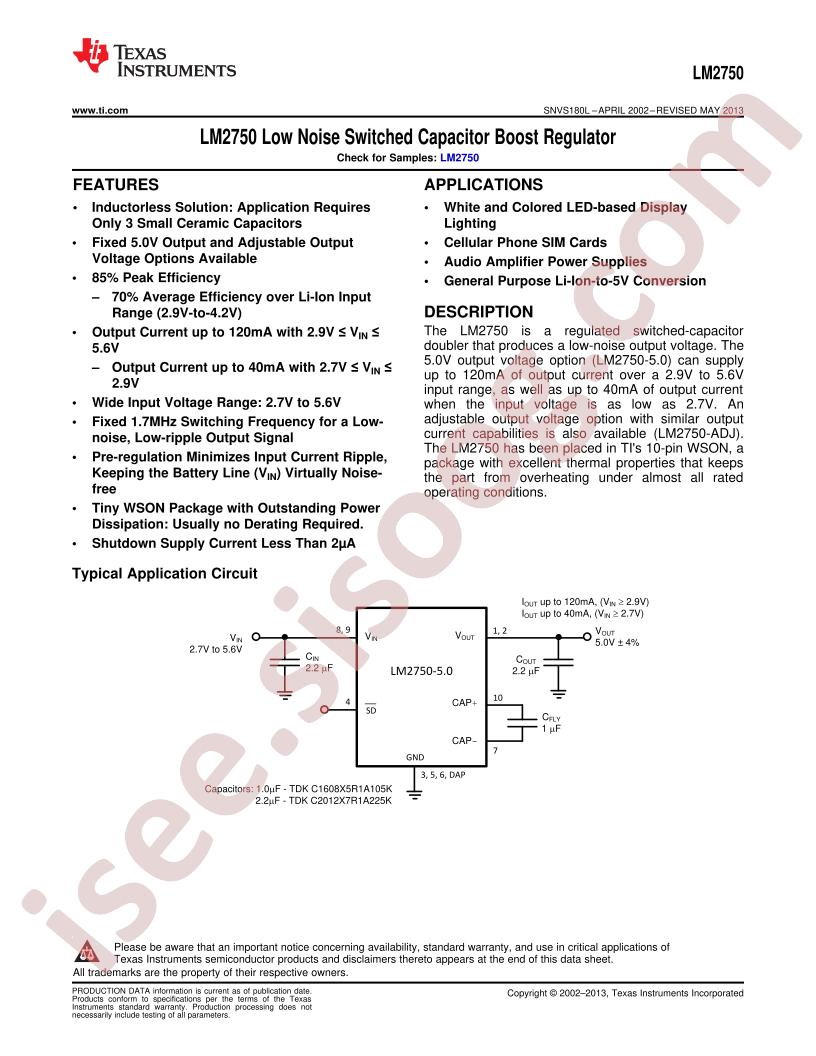

LM2750 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: boost converterType
- Topology: -
- Datasheet: Texas Instruments LM2750SD-5.0/NOPB
- Output Type: Fixed
- Input Voltage: 2.7V~5.6V
- Output Voltage: 5V
- Number of Outputs: 1
- Switching Frequency: 1.7MHz
- Output Current (Max): 120mA
- Operating Temperature: -40°C~+125°C@(TA)
- Synchronous Rectification: NO
- Package: WSON-10-EP(3.1x3.1)
- Manufacturer: Texas Instruments
- Package / Case: 10-WFDFN Exposed Pad
- Output Configuration: Positive
- Base Part Number: LM2750
- Packaging: Cut Tape (CT)
- Frequency - Switching: 1.7MHz
- Supplier Device Package: 10-WSON (3x3)
- Part Status: Obsolete
- Current - Output: 120mA
- Series: -
- Voltage - Input (Max): 5.6V
- Synchronous Rectifier: No
- Voltage - Output (Min/Fixed): 5V
- Voltage - Input (Min): 2.7V
- Mounting Type: Surface Mount
- Voltage - Output (Max): -
- detail: Charge Pump Switching Regulator IC Positive Fixed 5V 1 Output 120mA 10-WFDFN Exposed Pad
