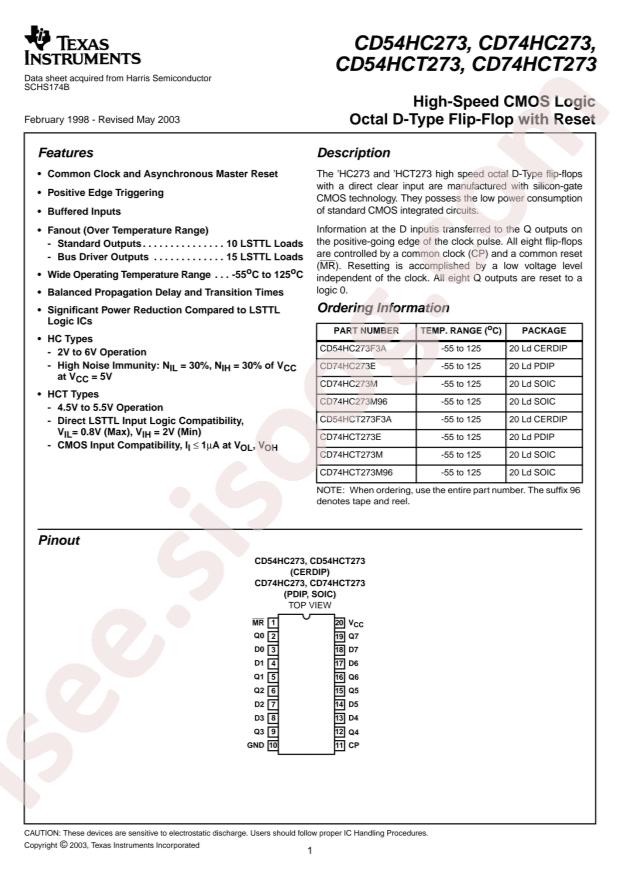

دیتاشیت CD74HC273E
مشخصات دیتاشیت
| نام دیتاشیت | CD54,74HC(T)273 |
|---|---|
| حجم فایل | 903.246 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 17 |

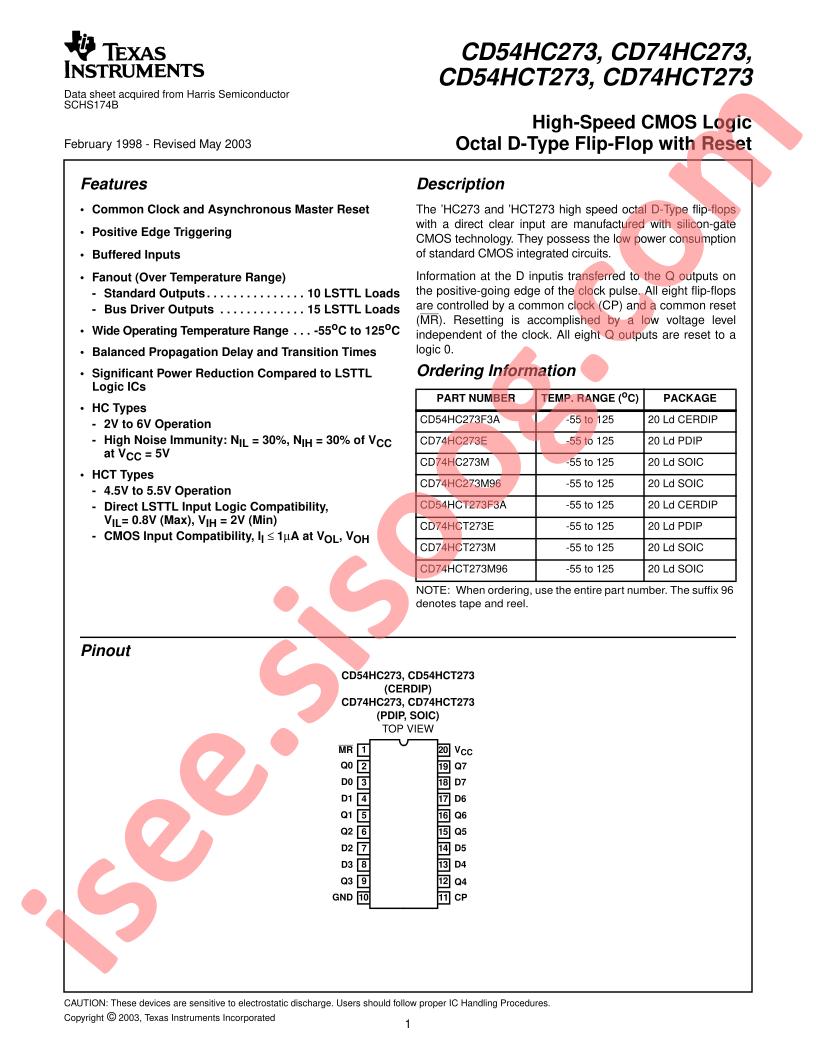

دانلود دیتاشیت CD54,74HC(T)273 |
CD54,74HC(T)273 Datasheet |
|---|
مشخصات
- RoHS: true
- Type: D-Type
- Series: 74HC
- Category: Logic ICs/Flip Flops
- Function: Reset
- Datasheet: Texas Instruments CD74HC273E
- Output Type: Non-Inverted
- Sink Current: 5.2mA
- Trigger Type: 上升沿
- Source Current: 5.2mA
- Supply Voltage: 2V~6V
- Clock Frequency: 60MHz
- Input Capacitance: 10pF
- Number of Elements: 1
- Operating Temperature: -55°C~+125°C
- Quiescent Current (Iq): 8uA
- Maximum Propagation Delay: 26ns@6V,50pF
- Number of Bits per Element: 8
- Package: PDIP-20
- Manufacturer: Texas Instruments
- Voltage - Supply: 2V ~ 6V
- Package / Case: 20-DIP (0.300", 7.62mm)
- Packaging: Tube
- Supplier Device Package: 20-PDIP
- Current - Output High, Low: 5.2mA, 5.2mA
- Part Status: Active
- Base Part Number: 74HC273
- Mounting Type: Through Hole
- Current - Quiescent (Iq): 8µA
- Max Propagation Delay @ V, Max CL: 26ns @ 6V, 50pF
- detail: Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-DIP (0.300", 7.62mm)
