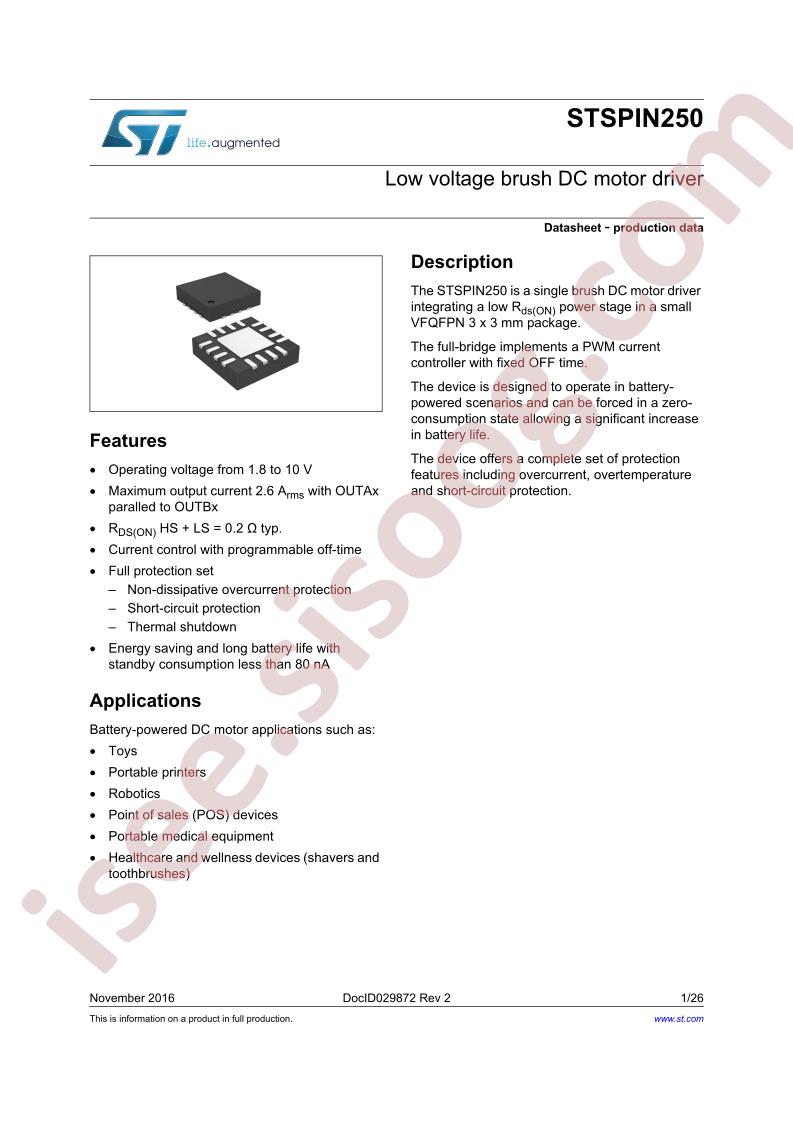

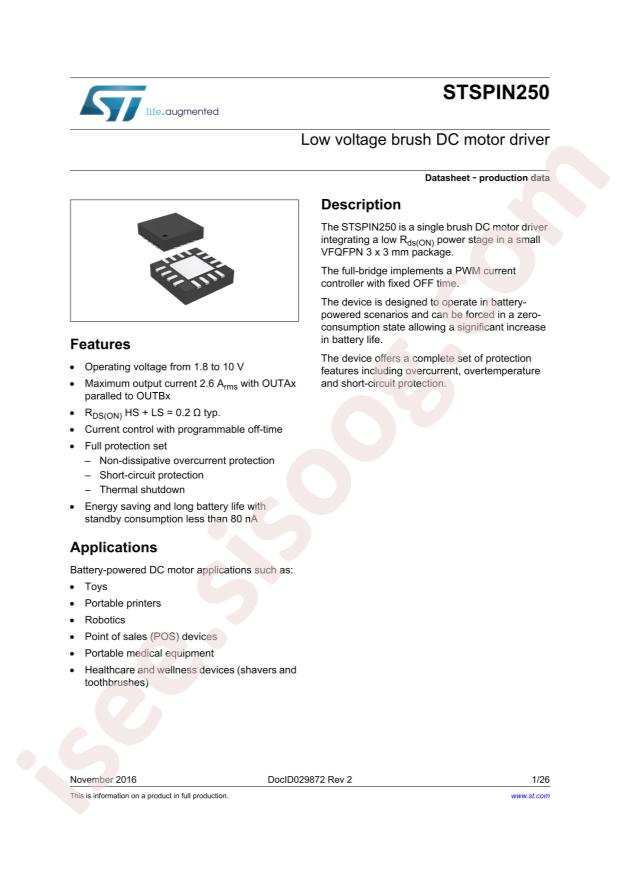

دیتاشیت STSPIN250

STSPIN250

مشخصات دیتاشیت

نام دیتاشیت STSPIN250
حجم فایل 54.734 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

STSPIN250

دانلود دیتاشیت

سایر مستندات

Products and Solutions Brochure 60 pages

STSPIN Motor Drivers 12 pages

STSPIN250 26 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: STMicroelectronics STSPIN250
  • Package: VFQFN-16-EP(3x3)
  • Manufacturer: STMicroelectronics
  • Series: STSPIN2
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Motor Type - Stepper: -
  • Motor Type - AC, DC: Brushed DC
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Output Configuration: Half Bridge (4)
  • Interface: PWM
  • Technology: Power MOSFET
  • Step Resolution: -
  • Applications: General Purpose
  • Current - Output: 2.6A
  • Voltage - Supply: 0V ~ 5V
  • Voltage - Load: 1.8V ~ 10V
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: 16-VFQFN Exposed Pad
  • Supplier Device Package: 16-VFQFPN (3x3)
  • Base Part Number: STSPIN
  • detail: Motor Driver Power MOSFET PWM 16-VFQFPN (3x3)
