CD54,74HC(T)374,574 Datasheet
Datasheet specifications
| Datasheet's name | CD54,74HC(T)374,574 |
|---|---|
| File size | 1224.626 KB |
| File type | |
| Number of pages | 21 |
Download Datasheet CD54,74HC(T)374,574 |
Download Datasheet |
|---|
Other documentations

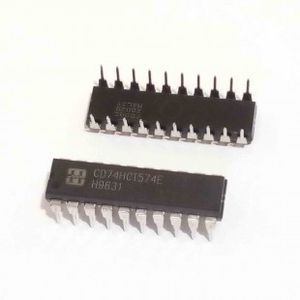

CD74HC574E 28 pages
Technical specifications
- RoHS: true
- Type: D-Type
- Series: 74HC
- Category: Logic ICs/Flip Flops
- Datasheet: Texas Instruments CD74HC374E
- Output Type: Tri-State;Non-Inverted
- Sink Current: 7.8mA
- Trigger Type: 上升沿
- Source Current: 7.8mA
- Supply Voltage: 2V~6V
- Clock Frequency: 60MHz
- Input Capacitance: 10pF
- Number of Elements: 1
- Operating Temperature: -55°C~+125°C
- Quiescent Current (Iq): 8uA
- Maximum Propagation Delay: 28ns@6V,50pF
- Number of Bits per Element: 8
- Package: PDIP-20
- Manufacturer: Texas Instruments
- Voltage - Supply: 2V ~ 6V
- Package / Case: 20-DIP (0.300", 7.62mm)
- Function: Standard
- Packaging: Tube
- Supplier Device Package: 20-PDIP
- Current - Output High, Low: 7.8mA, 7.8mA
- Part Status: Active
- Base Part Number: 74HC374
- Mounting Type: Through Hole
- Current - Quiescent (Iq): 8µA
- Max Propagation Delay @ V, Max CL: 28ns @ 6V, 50pF
- detail: Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-DIP (0.300", 7.62mm)
