VN5E050MJTR-E دیتاشیت

VN5E050MJTR-E

مشخصات دیتاشیت

نام دیتاشیت VN5E050MJTR-E
حجم فایل 85.712 کیلوبایت
نوع فایل pdf
تعداد صفحات 35

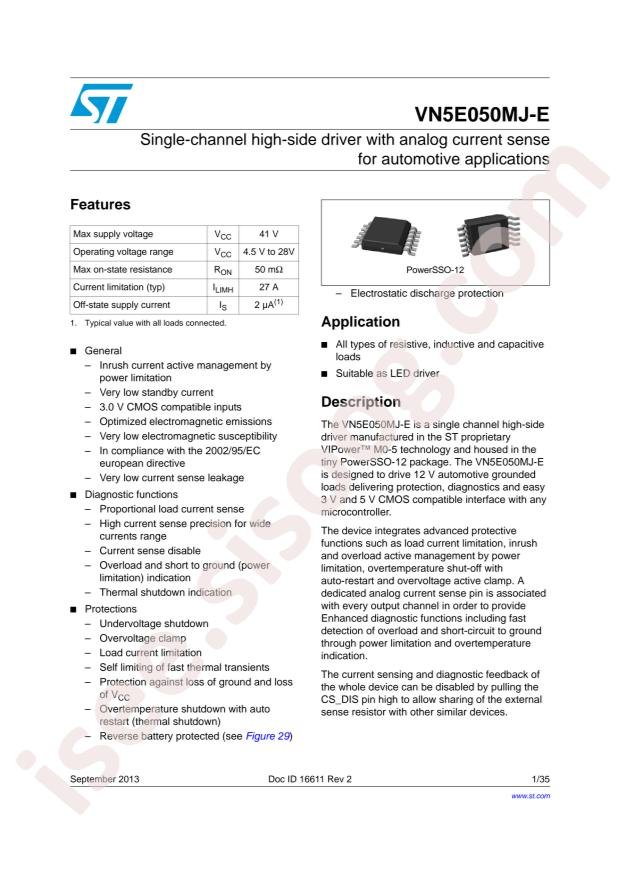

دانلود دیتاشیت VN5E050MJTR-E

دانلود دیتاشیت

سایر مستندات

VN5E050MJ-E 35 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: STMicroelectronics VN5E050MJTR-E
  • Input Voltage: 4.5V~28V
  • Output Current: 19A
  • Number of Outputs: 1
  • Resistor On-State: 50mΩ
  • Operating Temperature -: -40°C~+150°C
  • Package: PowerSSO-12
  • Manufacturer: STMicroelectronics
  • Series: VIPower™
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Switch Type: General Purpose
  • Ratio - Input:Output: 1:1
  • Output Configuration: High Side
  • Output Type: N-Channel
  • Interface: On/Off
  • Voltage - Load: 4.5V ~ 28V
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Current - Output (Max): 19A
  • Rds On (Typ): 50mOhm (Max)
  • Input Type: Non-Inverting
  • Features: Auto Restart
  • Fault Protection: Current Limiting (Fixed), Over Temperature, Over Voltage
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: PowerSSO-12™
  • Package / Case: PowerSSO-12
  • Base Part Number: VN5E050
  • detail: Power Switch/Driver 1:1 N-Channel 19A PowerSSO-12™
