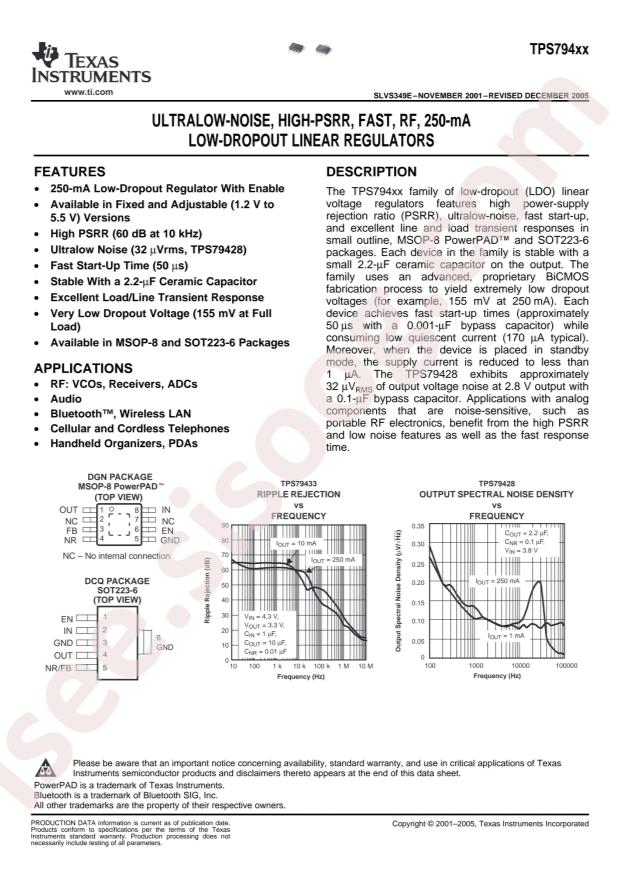

TPS79401DGNR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPS79401DGNR
|
|
حجم فایل
|
104.672
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
23
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Texas Instruments TPS79401DGNR
-
Output Type:
Adjustable
-
Output Current:
250mA
-
Output Voltage:
1.2V~5.5V
-
Dropout Voltage:
-
-
Output Polarity:
Positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
5.5V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
220uA
-
Power Supply Rejection Ratio (PSRR):
65dB@(100Hz),40dB@(100kHz)
-
Package:
MSOP-8-EP
-
Manufacturer:
Texas Instruments
-
Voltage - Input (Max):
5.5V
-
Current - Quiescent (Iq):
220µA
-
Output Configuration:
Positive
-
Base Part Number:
TPS794
-
Voltage - Output (Min/Fixed):
1.2V
-
Protection Features:
Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
PSRR:
65dB ~ 40dB (100Hz ~ 100kHz)
-
Supplier Device Package:
8-MSOP-PowerPad
-
Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
-
Number of Regulators:
1
-
Part Status:
Active
-
Control Features:
Enable
-
Voltage - Output (Max):
5.5V
-
Mounting Type:
Surface Mount
-
Voltage Dropout (Max):
-
-
Current - Output:
250mA
-
detail:
Linear Voltage Regulator IC 1 Output 250mA 8-MSOP-PowerPad
