STL33N60DM2 دیتاشیت

STL33N60DM2

مشخصات دیتاشیت

نام دیتاشیت STL33N60DM2
حجم فایل 62.337 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

مشاهده دیتاشیت STL33N60DM2

دانلود دیتاشیت

سایر مستندات

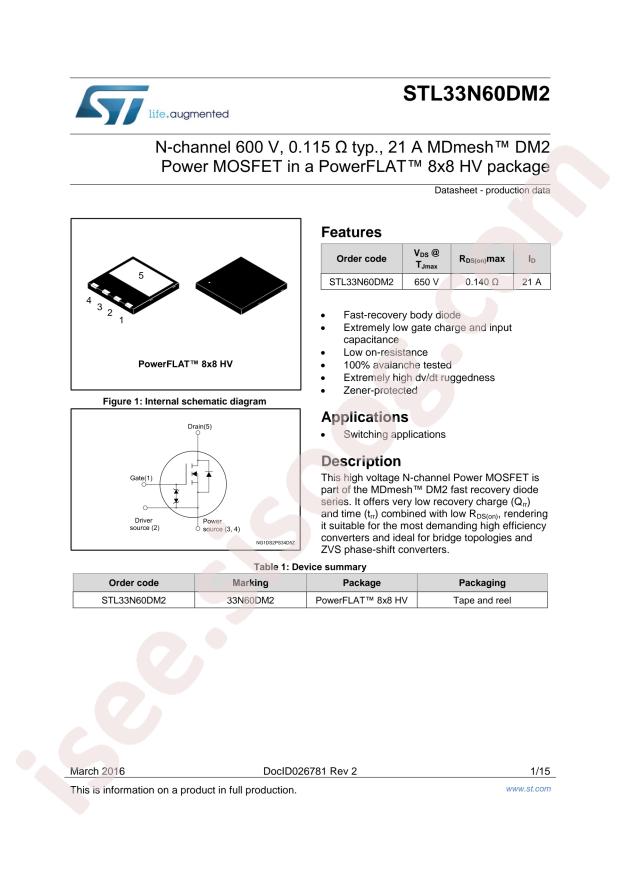

STL33N60DM2 Datasheet 15 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STL33N60DM2
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 150W
  • Total Gate Charge (Qg@Vgs): 43nC@10V
  • Drain Source Voltage (Vdss): 600V
  • Input Capacitance (Ciss@Vds): 1870pF@100V
  • Continuous Drain Current (Id): 21A
  • Gate Threshold Voltage (Vgs(th)@Id): 5V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 140mΩ@10V,10.5A
  • Package: SMD
  • Manufacturer: STMicroelectronics
  • Series: MDmesh™ DM2
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 600V
  • Current - Continuous Drain (Id) @ 25°C: 21A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 140mOhm @ 10.5A, 10V
  • Vgs(th) (Max) @ Id: 5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 43nC @ 10V
  • Vgs (Max): ±25V
  • Input Capacitance (Ciss) (Max) @ Vds: 1870pF @ 100V
  • FET Feature: -
  • Power Dissipation (Max): 150W (Tc)
  • Mounting Type: Surface Mount
  • Supplier Device Package: PowerFlat™ (8x8) HV
  • Package / Case: 8-PowerVDFN
  • Base Part Number: STL33
  • detail: N-Channel 600V 21A (Tc) 150W (Tc) Surface Mount PowerFlat™ (8x8) HV
