دیتاشیت TPS40210DGQRG4

مشخصات دیتاشیت

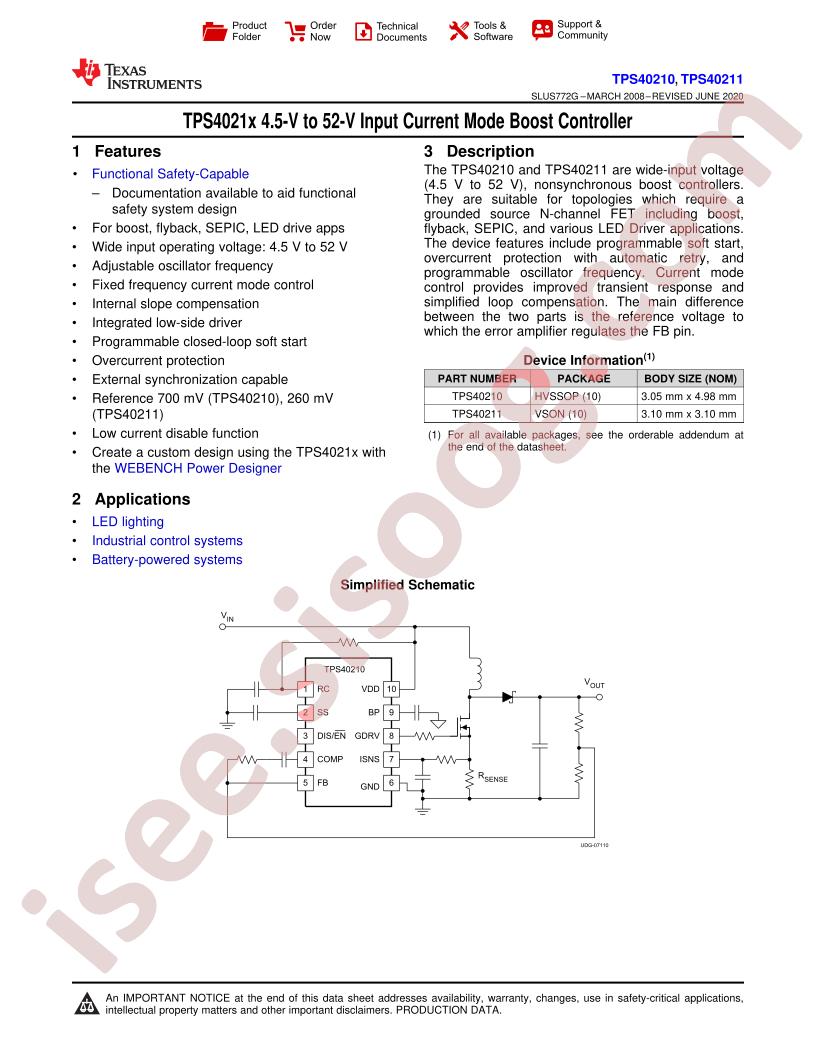

دانلود دیتاشیت TPS40210, TPS40211	TPS40210, TPS40211 Datasheet

Part Status: Active
Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
Packaging: Cut Tape (CT)
Topology: Boost, Flyback, SEPIC
Frequency - Switching: 35kHz ~ 1MHz
Supplier Device Package: 10-MSOP-PowerPad
Number of Outputs: 1
Serial Interfaces: -
Manufacturer: Texas Instruments
Synchronous Rectifier: No
Function: Step-Up, Step-Up/Step-Down
Clock Sync: Yes
Operating Temperature: -40°C ~ 125°C (TJ)
Mounting Type: Surface Mount
Output Configuration: Positive
Base Part Number: TPS402
Series: -
Output Type: Transistor Driver
Control Features: Enable, Frequency Control, Soft Start
Output Phases: 1
Duty Cycle (Max): -
Voltage - Supply (Vcc/Vdd): 4.5V ~ 52V
detail: Boost, Flyback, SEPIC Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 10-MSOP-PowerPad
