دیتاشیت LM337LZ/NOPB

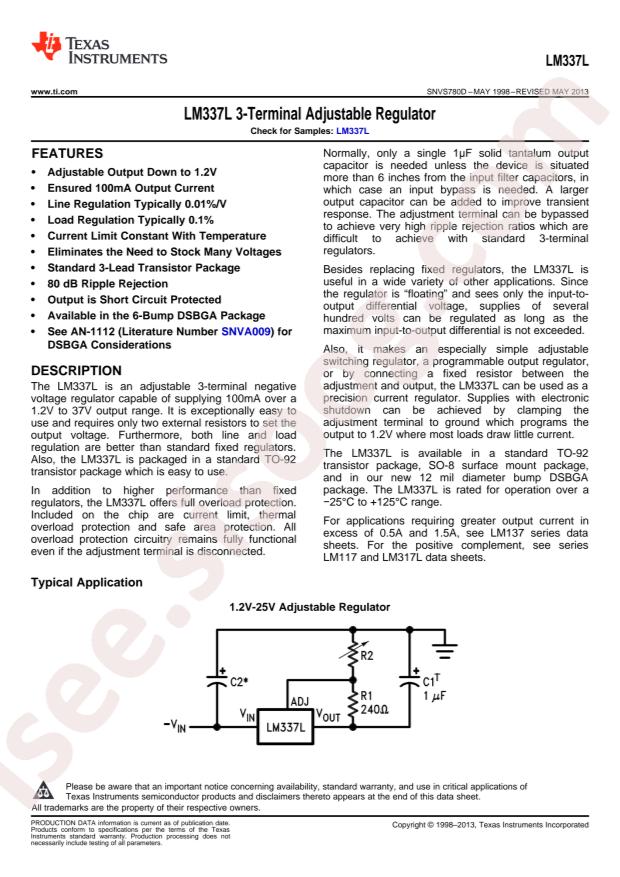

LM337L Datasheet

مشخصات دیتاشیت

نام دیتاشیت LM337L Datasheet
حجم فایل 1623.039 کیلوبایت
نوع فایل pdf
تعداد صفحات 23

دانلود دیتاشیت LM337L Datasheet

LM337L Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Texas Instruments LM337LZ/NOPB
  • Output Type: Adjustable
  • Output Current: 100mA
  • Output Voltage: 1.2V~37V
  • Dropout Voltage: -
  • Output Polarity: Negative
  • Number of Outputs: 1
  • Maximum Input Voltage: 40V
  • Operating Temperature: -25°C~+125°C
  • Power Supply Rejection Ratio (PSRR): 60dB@(120Hz)
  • Package: TO-92-3
  • Manufacturer: Texas Instruments
  • Voltage - Input (Max): -40V
  • Output Configuration: Negative
  • Base Part Number: LM337
  • Voltage - Output (Min/Fixed): -1.2V
  • Protection Features: Over Temperature, Short Circuit
  • Series: -
  • Packaging: Bulk
  • PSRR: 60dB (120Hz)
  • Supplier Device Package: TO-92-3
  • Package / Case: TO-226-3, TO-92-3 (TO-226AA)
  • Number of Regulators: 1
  • Part Status: Active
  • Control Features: -
  • Voltage - Output (Max): -37V
  • Mounting Type: Through Hole
  • Voltage Dropout (Max): -
  • Current - Output: 100mA
  • detail: Linear Voltage Regulator IC 1 Output 100mA TO-92-3
