دیتاشیت LP38502SD-ADJ/NOPB

LP38500/2-ADJ, LP38500A/2A-ADJ

مشخصات دیتاشیت

نام دیتاشیت LP38500/2-ADJ, LP38500A/2A-ADJ
حجم فایل 1540.475 کیلوبایت
نوع فایل pdf
تعداد صفحات 30

دانلود دیتاشیت LP38500/2-ADJ, LP38500A/2A-ADJ

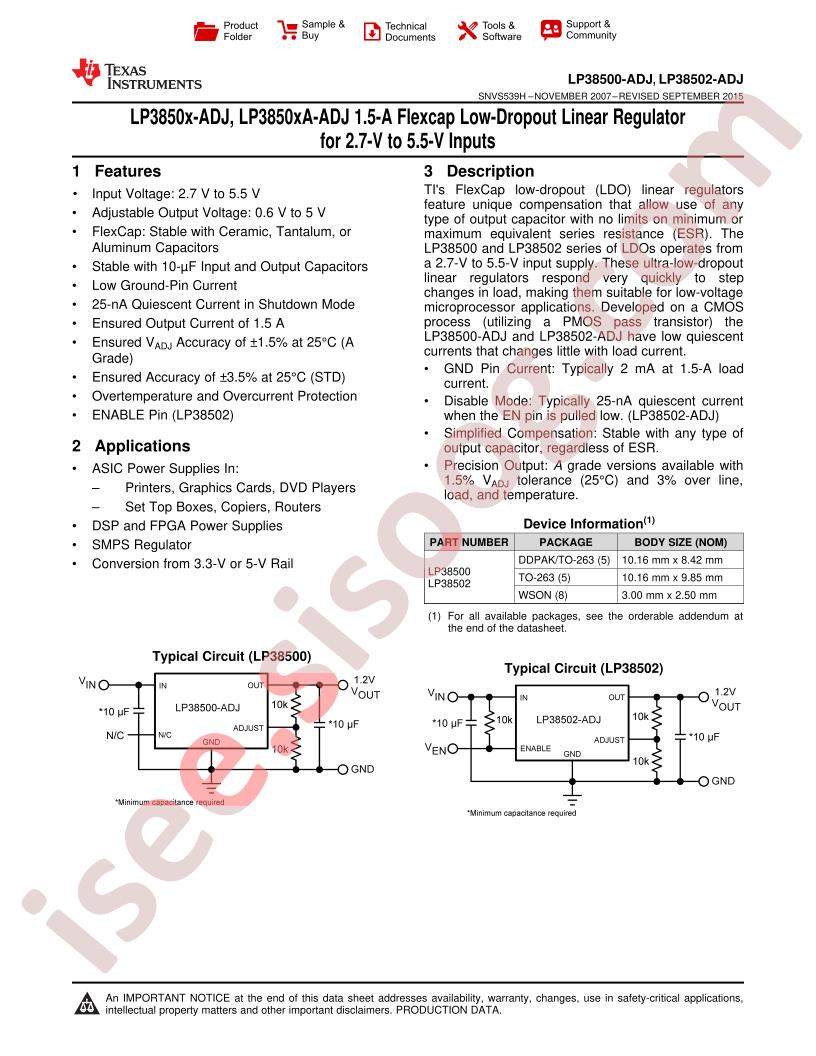

LP38500/2-ADJ, LP38500A/2A-ADJ Datasheet

مشخصات

  • Current - Supply (Max): 4mA
  • Output Configuration: Positive
  • Package / Case: 8-WFDFN Exposed Pad
  • Packaging: Cut Tape (CT)
  • Protection Features: Over Current, Over Temperature, Short Circuit
  • Number of Regulators: 1
  • Part Status: Active
  • Current - Quiescent (Iq): 15µA
  • Operating Temperature: -40°C ~ 125°C
  • Supplier Device Package: 8-WSON (3x2.5)
  • Manufacturer: Texas Instruments
  • Voltage - Input (Max): 5.5V
  • Voltage - Output (Min/Fixed): 0.6V
  • Mounting Type: Surface Mount
  • PSRR: 58dB ~ 56dB (120Hz ~ 1kHz)
  • Base Part Number: LP38502
  • Series: -
  • Output Type: Adjustable
  • Control Features: Enable
  • Voltage - Output (Max): 5V
  • Voltage Dropout (Max): 0.37 @ 1.5A
  • Current - Output: 1.5A
  • detail: Linear Voltage Regulator IC 1 Output 1.5A 8-WSON (3x2.5)
