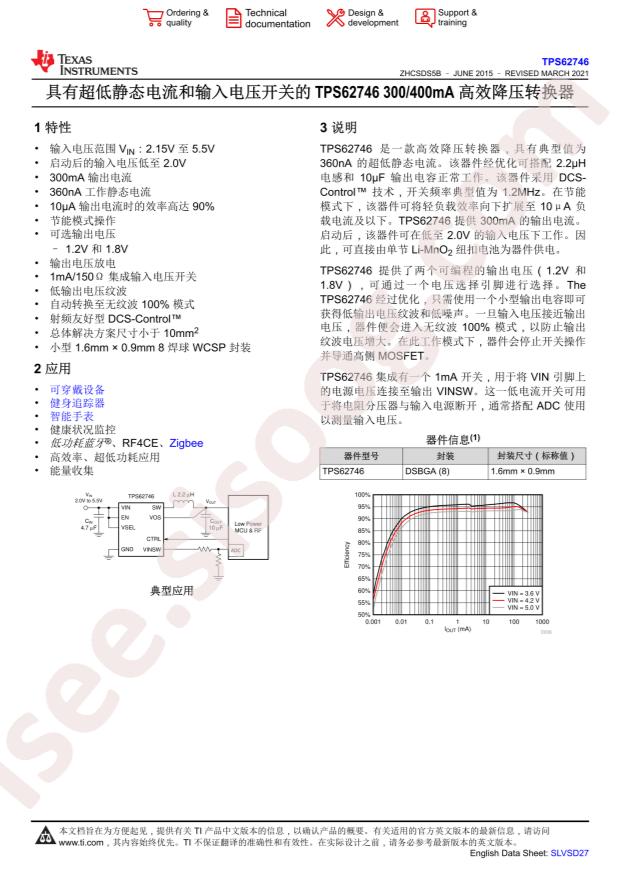

TPS62746YFPT دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPS62746YFPT
|
|
حجم فایل
|
83.601
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
31
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Step-down type
-
Topology:
Step-down
-
Datasheet:
Texas Instruments TPS62746YFPT
-
Output Type:
Adjustable
-
Input Voltage:
2.15V~5.5V
-
Output Voltage:
1.2V;1.8V
-
Number of Outputs:
1
-
Switching Frequency:
1.2MHz
-
Output Current (Max):
300mA
-
Operating Temperature:
-40°C~+85°C@(TA)
-
Synchronous Rectification:
Yes
-
Package:
BGA-8
-
Manufacturer:
Texas Instruments
-
Current - Output:
300mA
-
Voltage - Input (Max):
5.5V
-
Frequency - Switching:
1.2MHz
-
Part Status:
Active
-
Base Part Number:
TPS627
-
Voltage - Output (Min/Fixed):
1.2V, 1.8V
-
Package / Case:
8-XFBGA, DSBGA
-
Series:
DCS-Control™
-
Packaging:
Cut Tape (CT)
-
Synchronous Rectifier:
Yes
-
Output Configuration:
Positive
-
Voltage - Output (Max):
-
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
8-DSBGA
-
Voltage - Input (Min):
2.15V
-
detail:
Buck Switching Regulator IC Positive Programmable 1.2V, 1.8V 1 Output 300mA 8-XFBGA, DSBGA
