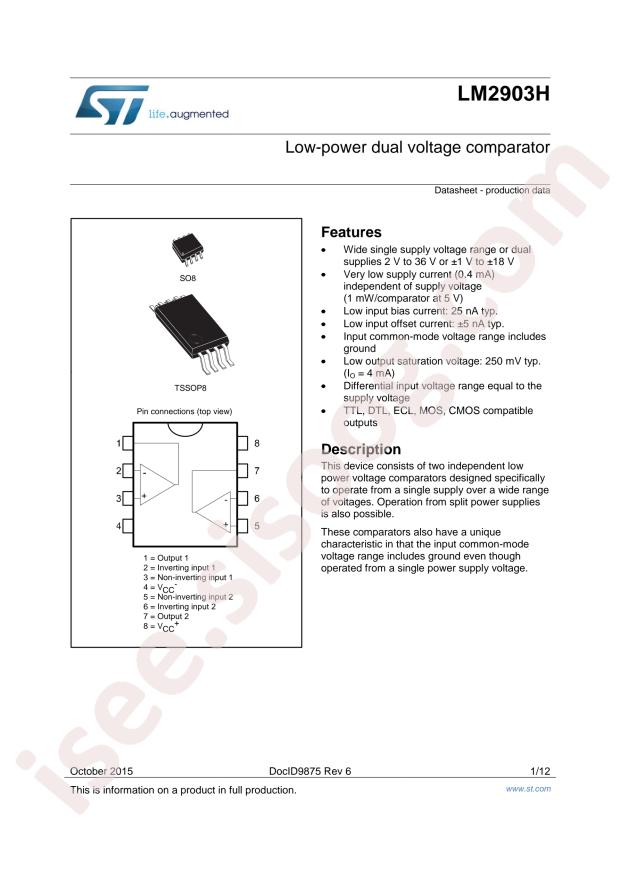

- دیتاشیت LM2903HYPT
LM2903HYPT دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | LM2903HYPT |
|---|---|
| حجم فایل | 57.52 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 12 |
دانلود دیتاشیت LM2903HYPT |
دانلود دیتاشیت |
|---|
سایر مستندات
Macromodels User Manual 10 pages
LM2903H 12 pages
مشخصات فنی
- RoHS: true
- Category: Operational Amplifier/Comparator/Comparators
- Datasheet: STMicroelectronics LM2903HYPT
- Output Type: 开集;轨到轨
- Supply Voltage: 2V~36V;1V~18V
- Number of Elements: -
- Operating Temperature: -40°C~+150°C
- Input Bias Current (Ib): 0.25uA
- Input Offset Voltage (Vos): 7mV
- Input Hysteresis Voltage (Vhys): -
- Common Mode Rejection Ratio (CMRR): -
- Package: TSSOP-8
- Manufacturer: STMicroelectronics
- Series: Automotive, AEC-Q100
- Packaging: Cut Tape (CT)
- Part Status: Active
- Type: General Purpose
- Voltage - Supply, Single/Dual (±): 2V ~ 36V, ±1V ~ 18V
- Voltage - Input Offset (Max): 7mV @ 30V
- Current - Input Bias (Max): 0.25µA @ 5V
- Current - Output (Typ): 16mA @ 5V
- Current - Quiescent (Max): 2.5mA
- CMRR, PSRR (Typ): -
- Propagation Delay (Max): -
- Hysteresis: -
- Package / Case: 8-TSSOP (0.173", 4.40mm Width)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-TSSOP
- Base Part Number: LM2903
- detail: Comparator General Purpose CMOS, DTL, ECL, MOS, Open-Collector, TTL 8-TSSOP
