LM5026MTX/NOPB دیتاشیت

LM5026MTX/NOPB

مشخصات دیتاشیت

نام دیتاشیت LM5026MTX/NOPB
حجم فایل 98.953 کیلوبایت
نوع فایل pdf
تعداد صفحات 39

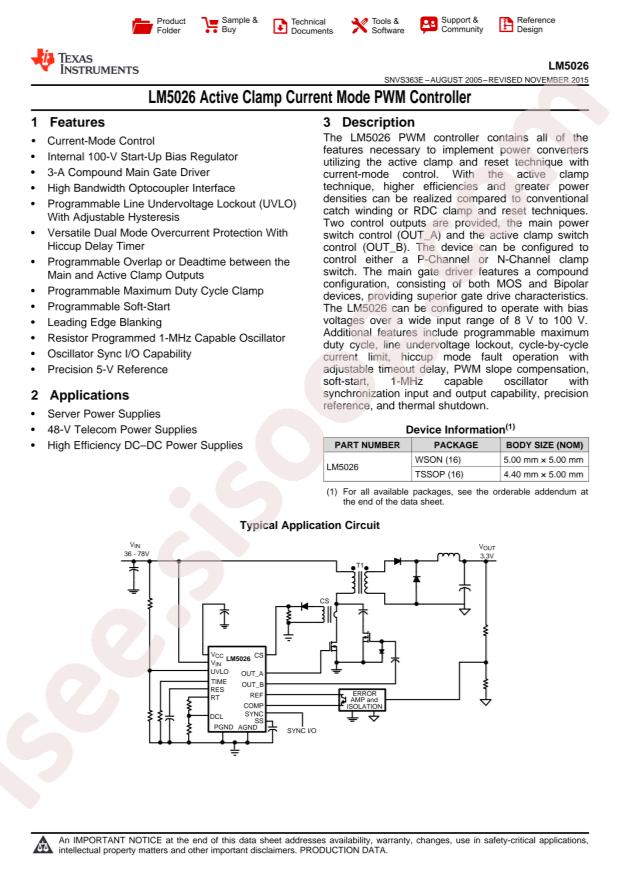

دانلود دیتاشیت LM5026MTX/NOPB

دانلود دیتاشیت

سایر مستندات

LM5026 40 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/AC-DC Controllers & Regulators
  • Topology: Forward
  • Datasheet: Texas Instruments LM5026MTX/NOPB
  • Duty Cycle: 70%;80%
  • Supply Voltage: 8V~15V
  • Switching Frequency: 200kHz~590kHz
  • Operating Temperature: -40°C~+125°C@(TJ)

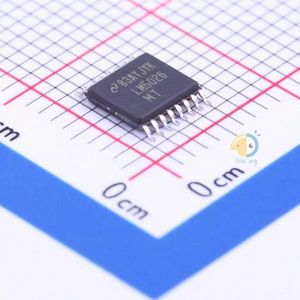

  • Package: TSSOP-16
  • Manufacturer: Texas Instruments
  • Voltage - Supply (Vcc/Vdd): 8V ~ 15V
  • Package / Case: 16-TSSOP (0.173", 4.40mm Width)
  • Base Part Number: LM5026
  • Clock Sync: Yes
  • Control Features: Dead Time Control, Frequency Control, Reset, Soft Start
  • Part Status: Obsolete
  • Number of Outputs: 2
  • Series: -
  • Mounting Type: Surface Mount
  • Output Type: Transistor Driver
  • Function: Step-Up/Step-Down
  • Output Configuration: Positive, Isolation Capable
  • Synchronous Rectifier: No
  • Frequency - Switching: 200kHz ~ 590kHz
  • Supplier Device Package: 16-TSSOP
  • Duty Cycle (Max): 70%, 80%
  • Packaging: Cut Tape (CT)
  • Output Phases: 1
  • Serial Interfaces: -
  • detail: Forward Converter Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 16-TSSOP
