STD7LN80K5 دیتاشیت

STD7LN80K5

مشخصات دیتاشیت

نام دیتاشیت STD7LN80K5
حجم فایل 56.838 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

دانلود دیتاشیت STD7LN80K5

دانلود دیتاشیت

سایر مستندات

Spice Model Tutorial for Power MOSFETS 24 pages

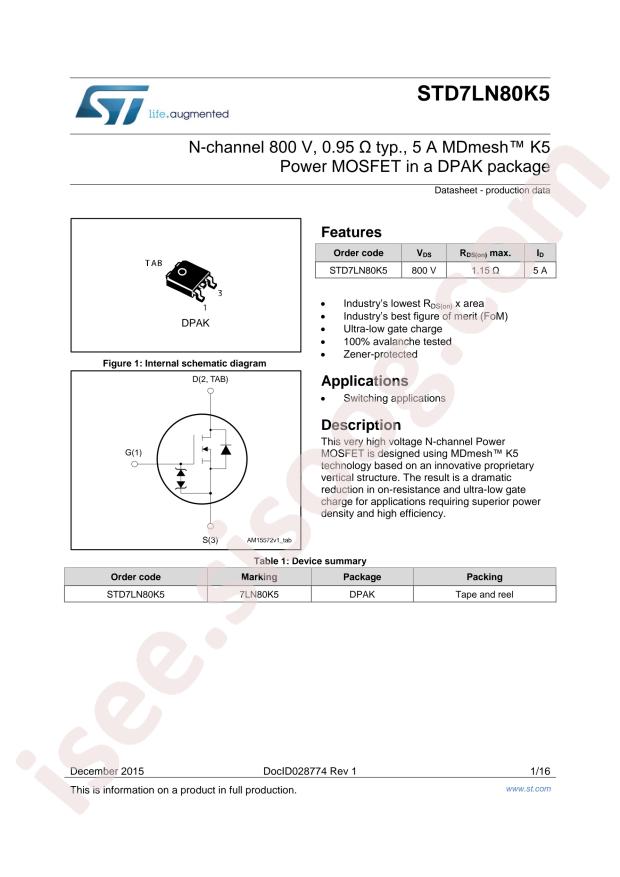

STD7LN80K5 Datasheet 16 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STD7LN80K5
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 85W
  • Total Gate Charge (Qg@Vgs): 12nC@10V
  • Drain Source Voltage (Vdss): 800V
  • Input Capacitance (Ciss@Vds): 270pF@100V
  • Continuous Drain Current (Id): 5A
  • Gate Threshold Voltage (Vgs(th)@Id): 5V@100uA
  • Reverse Transfer Capacitance (Crss@Vds): 0.5pF@100V
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 950mΩ@10V,2.5A
  • Package: TO-252
  • Manufacturer: STMicroelectronics
  • Series: MDmesh™
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 800V
  • Current - Continuous Drain (Id) @ 25°C: 5A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 1.15Ohm @ 2.5A, 10V
  • Vgs(th) (Max) @ Id: 5V @ 100µA
  • Gate Charge (Qg) (Max) @ Vgs: 12nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 270pF @ 100V
  • FET Feature: -
  • Power Dissipation (Max): 85W (Tc)
  • Mounting Type: Surface Mount
  • Supplier Device Package: DPAK
  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Base Part Number: STD7
  • detail: N-Channel 800V 5A (Tc) 85W (Tc) Surface Mount DPAK
