LP2952IMX/NOPB دیتاشیت

LP2952IMX/NOPB

مشخصات دیتاشیت

نام دیتاشیت LP2952IMX/NOPB
حجم فایل 92.805 کیلوبایت
نوع فایل pdf
تعداد صفحات 41

دانلود دیتاشیت LP2952IMX/NOPB

دانلود دیتاشیت

سایر مستندات

LP2952,53(A,-N) 40 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)

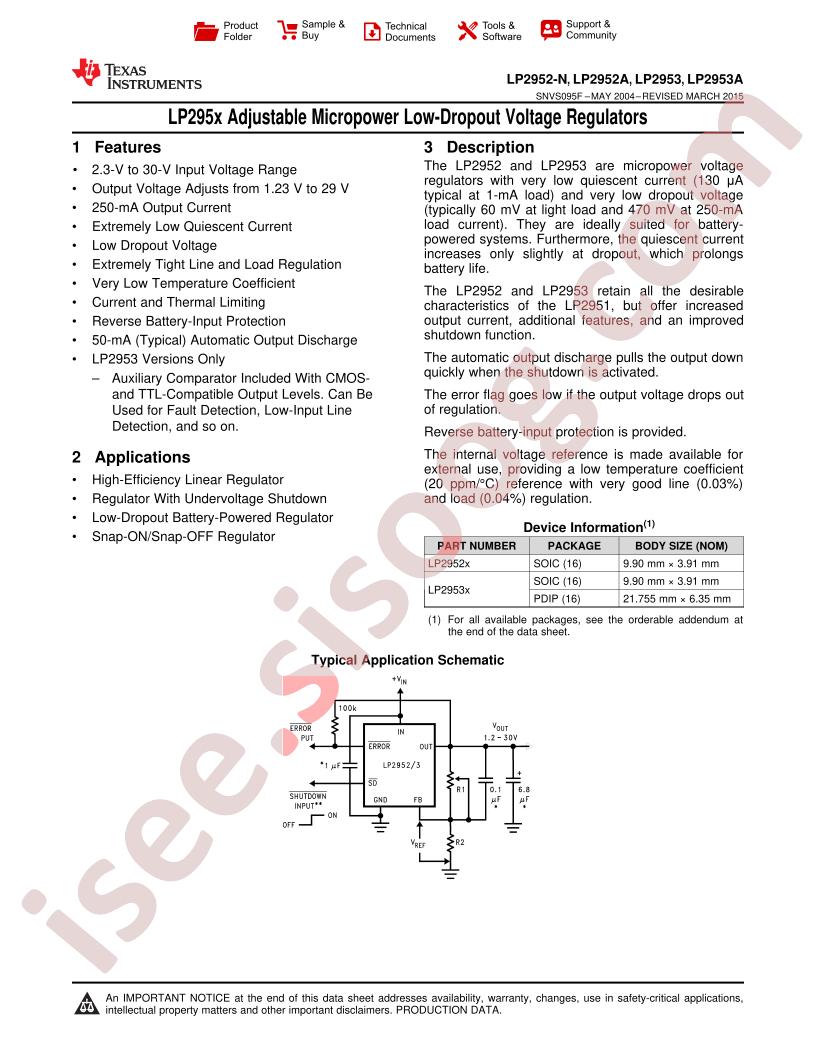

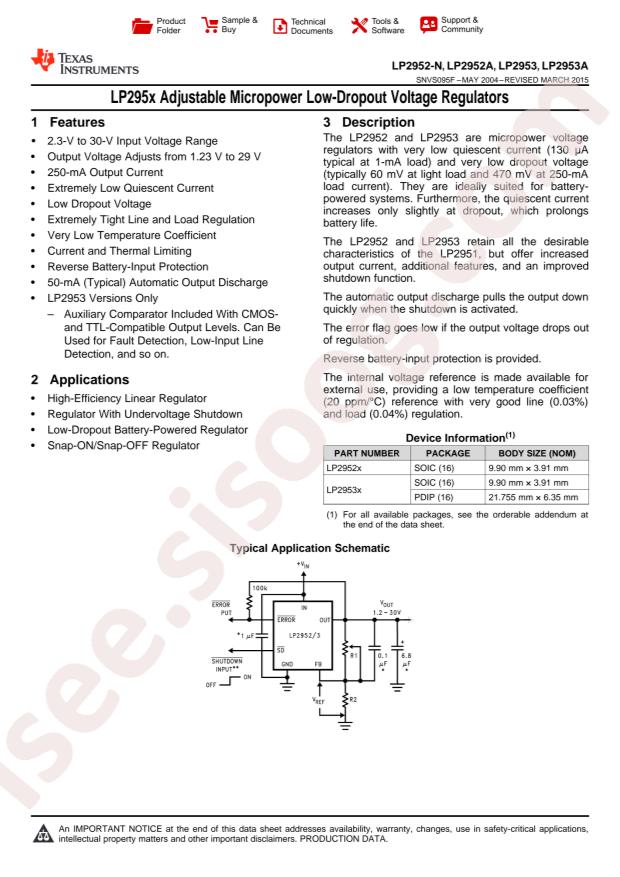

  • Datasheet: Texas Instruments LP2952IMX/NOPB
  • Output Current: 250mA
  • Output Voltage: 1.23V~29V
  • Dropout Voltage: 0.8V@(250mA)
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 35V
  • Operating Temperature: -40°C~+125°C
  • Quiescent Current (Ground Current): 170uA
  • Package: SOP-16
  • Manufacturer: Texas Instruments
  • Current - Supply (Max): 33mA
  • Output Configuration: Positive
  • Package / Case: 16-SOIC (0.154", 3.90mm Width)
  • Packaging: Cut Tape (CT)
  • Protection Features: Over Current, Over Temperature, Reverse Polarity
  • Number of Regulators: 1
  • Part Status: Active
  • Current - Quiescent (Iq): 170µA
  • Supplier Device Package: 16-SOIC
  • Voltage - Input (Max): 30V
  • Voltage - Output (Min/Fixed): 1.23V (5V)
  • Mounting Type: Surface Mount
  • PSRR: -
  • Base Part Number: LP2952
  • Series: -
  • Output Type: Adjustable (Fixed)
  • Control Features: Enable
  • Voltage - Output (Max): 29V
  • Voltage Dropout (Max): 0.8V @ 250mA
  • Current - Output: 250mA
  • detail: Linear Voltage Regulator IC 1 Output 250mA 16-SOIC
