ST1S32PUR دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت ST1S32PUR	دانلود دیتاشیت

ST1S32 29 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: STMicroelectronics ST1S32PUR
Output Type: Adjustable
Input Voltage: 2.8V~5.5V
Output Voltage: 0.8V~5.5V
Number of Outputs: 1
Switching Frequency: 1.5MHz
Output Current (Max): 4A
Operating Temperature: -40°C~+150°C@(TJ)
Synchronous Rectification: Yes

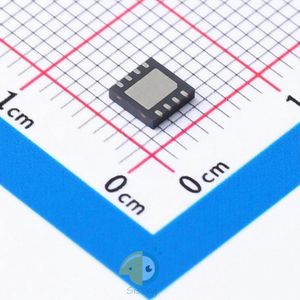

Package: VFQFPN-8L(4x4)
Manufacturer: STMicroelectronics
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Output Configuration: Positive
Voltage - Input (Min): 2.8V
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 0.8V
Voltage - Output (Max): 5.5V
Current - Output: 4A
Frequency - Switching: 1.5MHz
Synchronous Rectifier: Yes
Mounting Type: Surface Mount
Package / Case: 8-VDFN Exposed Pad
Supplier Device Package: 8-VFDFPN (3x3)
Base Part Number: ST1S32
detail: Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 4A 8-VDFN Exposed Pad
