دیتاشیت DRV8841PWPR
مشخصات دیتاشیت
| نام دیتاشیت | DRV8841 Datasheet |
|---|---|
| حجم فایل | 1659.344 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 29 |

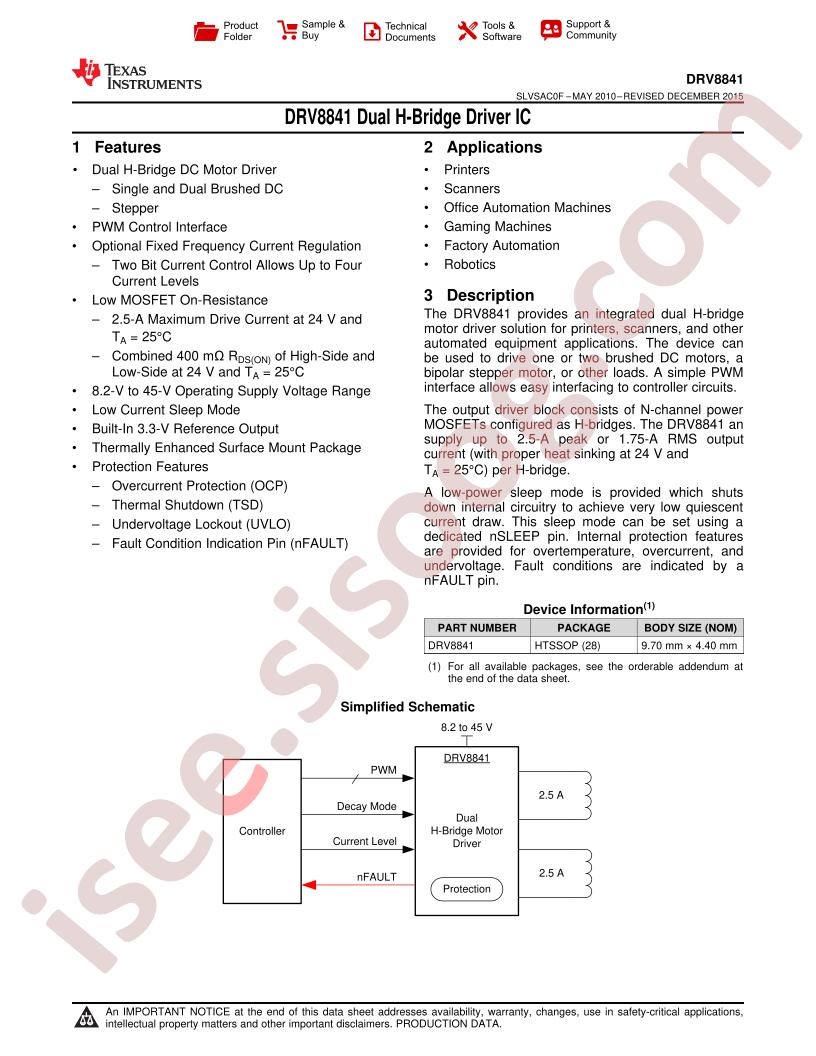

دانلود دیتاشیت DRV8841 Datasheet |
DRV8841 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Type: Brush DC Motor
- Category: Power Supply Chip/Motor Driver ICs
- Datasheet: Texas Instruments DRV8841PWPR
- Interface: Parallel
- Output Current: 1.75A
- Supply Voltage: 8.2V~45V
- Operating Temperature: -40°C~+150°C@(Tj)
- Package: TSSOP-28-EP
- Manufacturer: Texas Instruments
- Applications: General Purpose
- Motor Type - AC, DC: Brushed DC
- Motor Type - Stepper: Bipolar
- Technology: Power MOSFET
- Series: -
- Voltage - Supply: 8.2V ~ 45V
- Function: Driver - Fully Integrated, Control and Power Stage
- Packaging: Cut Tape (CT)
- Package / Case: 28-PowerTSSOP (0.173", 4.40mm Width)
- Step Resolution: -
- Voltage - Load: 8.2V ~ 45V
- Part Status: Active
- Output Configuration: Half Bridge (4)
- Base Part Number: DRV8841
- Supplier Device Package: 28-HTSSOP
- Mounting Type: Surface Mount
- Current - Output: 1.75A
- detail: Bipolar Motor Driver Power MOSFET Parallel 28-HTSSOP
